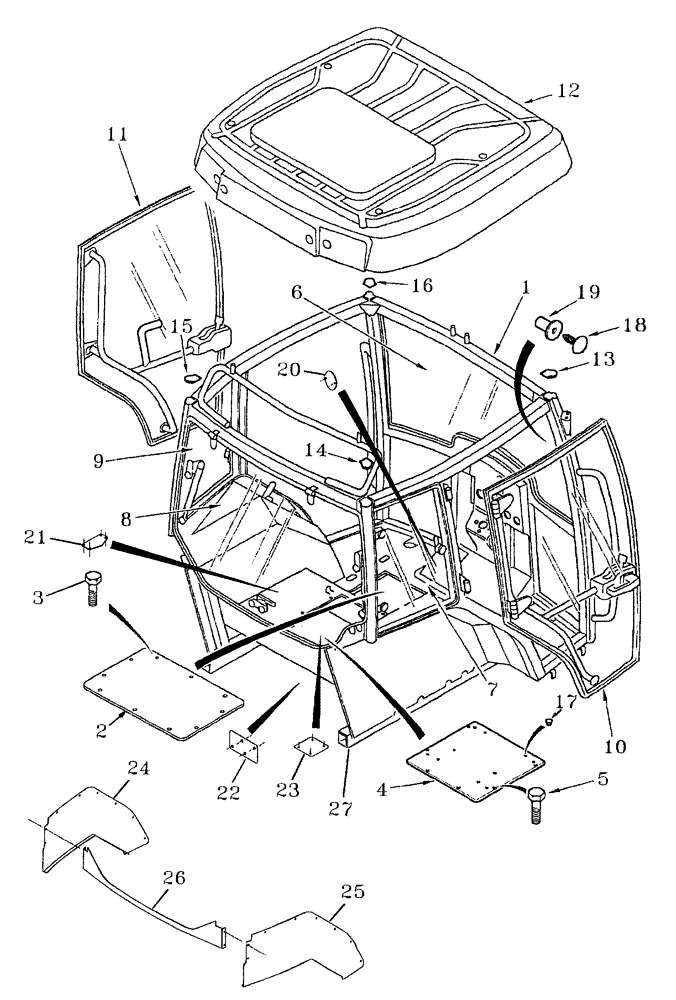

Запчасти Case IH AUSTOFT (A03[01]) - CABIN Mainframe & Functioning Components

1

NSS

NOT SOLD SEPARAT

FRAME ASSY.

1шт.

2

242924A1

PLATE ASSY.

PANEL ASSY.

1шт.

3

FA108020

BOLT

10шт.

4

332182A1

PANEL ASSY.

1шт.

5

FA108030

BOLT

BOLT

6шт.

6

WINDSHIELD refer page A03.02

1шт.

7

GLASS (R.H.S.) refer page A03.02

1шт.

8

GLASS (Rear) refer page A03.03

1шт.

9

GLASS (L.H.S.) refer page A03.02

1шт.

10

DOOR Assy. (R.H.S.) refer page A03.05

1шт.

11

DOOR Assy. (L.H.S.) refer page A03.04

1шт.

12

ROOF Assy. refer page A03.06

1шт.

13

233413A1

GROMMET

PLUG

1шт.

14

233416A1

GROMMET

PLUG

1шт.

15

233415A1

GROMMET

PLUG

1шт.

16

233414A1

GROMMET

PLUG

1шт.

17

FV108020

SCREW,Btn Flg, M8 x 20mm

1шт.

18

P35448

RIVET

INSERT

4шт.

19

716493R2

PLUG

4шт.

20

393658A1

COVER (front floor)

1шт.

21

393643A1

COVER (L.H.S. floor)

1шт.

22

398391A1

COVER (brake holes)

1шт.

23

397902A1

COVER (RHS floor)

1шт.

24

375171A1

COVER

1шт.

25

375167A1

COVER

1шт.

26

395122A1

COVER (external rear)

1шт.

27

365716A1

FRAME reworked

1шт.
