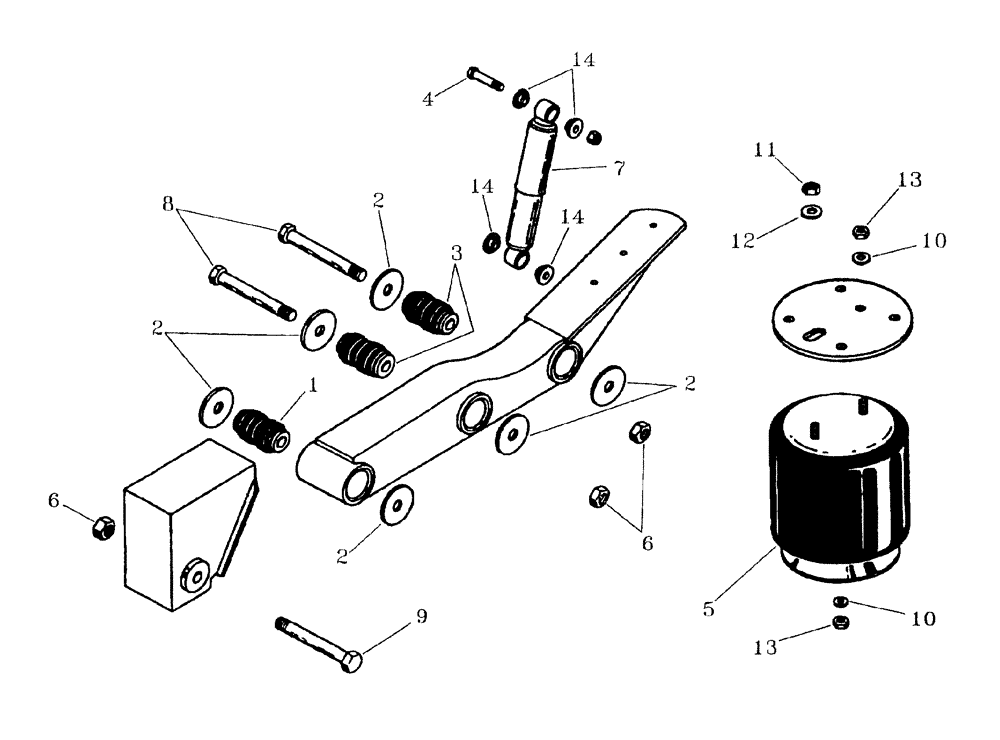

Запчасти Case IH AUSTOFT (A02[09]) - REAR SUSPENSION Mainframe & Functioning Components

1

407410A1

BUSHING

4шт.

2

407409A1

WASHER

SPACER

24шт.

3

407411A1

END

BUSHING

8шт.

4

376939A1

STRAP

bolt & catch kit 02

1шт.

5

407412A1

SUSPENSION

AIR SPRING ASSY

4шт.

352248A1

SUPPORTING ARM

TRAILING ARM LHS

1шт.

352247A1

SUPPORTING ARM

TRAILING ARM RHS

1шт.

6

407413A1

LOCK NUT

LOCKNUT

12шт.

7

407414A1

SHOCK ABSORBER

4шт.

8

407415A1

BOLT,1 1/8" - 7 x 8 1/2"

SCREW

8шт.

9

407421A1

BOLT,1 1/8" - 7 x 9 1/4""

SCREW

4шт.

10

407416A1

WASHER

8шт.

11

407417A1

NUT

4шт.

12

407418A1

WASHER

4шт.

13

407419A1

NUT

8шт.

14

407420A1

BUSHING

16шт.
