(A01[07]) - CROSS CONVEYOR FRAME

Запчасти Case IH AUSTOFT (A01[07]) - CROSS CONVEYOR FRAME Mainframe & Functioning Components

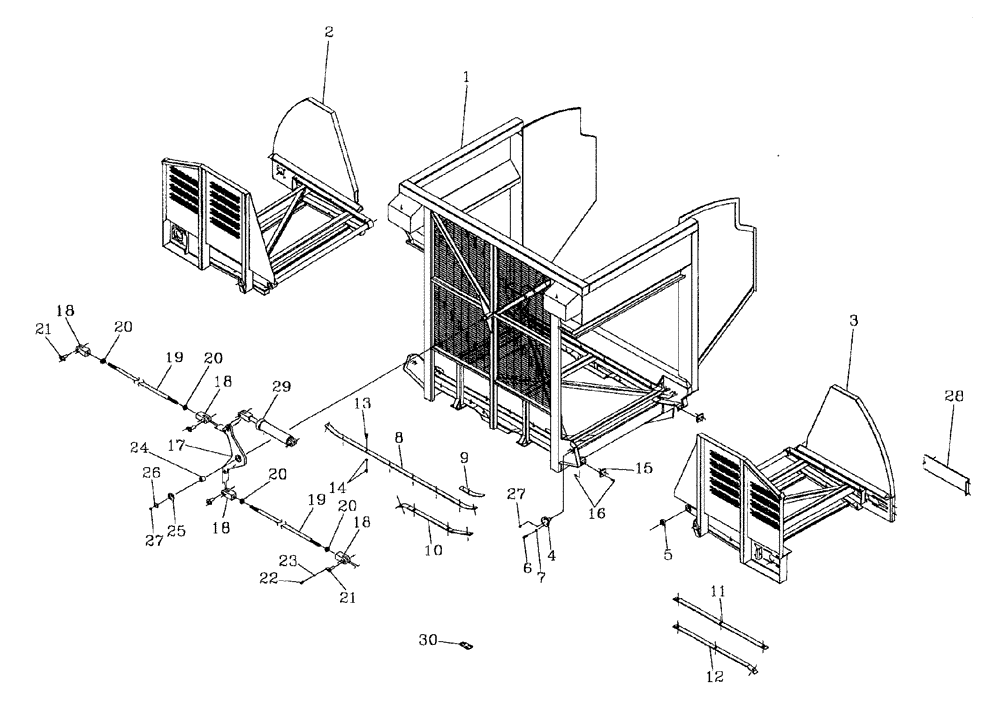

Схема запчастей Case IH AUSTOFT - (A01[07]) - CROSS CONVEYOR FRAME Mainframe & Functioning Components
18
10
20
1
6
27
8
20
19
3
13
12
4
11
18
30
28
26
29
9
27
20
21
16
18
2
14
23
5
21
15
25
20
18
22
19
24
17
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

335905A1

CONVEYOR ASSY.

CONVEYOR

1шт.

2

347123A1

CONVEYOR ASSY.

WING (RH)

1шт.

3

347065A1

CONVEYOR ASSY.

WING (LH)

1шт.

4

87218317

PIN

4шт.

5

00141400

BEARING

BEARING

4шт.

6

FA110020

BOLT

8шт.

7

WB100000

WASHER

8шт.

8

347145A1

MOUNTING PARTS

WEAR Strip (upper)

2шт.

9

347138A1

WEAR STRIP

(top corner)

4шт.

10

347144A1

WEAR STRIP

(lower)

4шт.

11

347148A1

WEAR STRIP

(upper wing)

4шт.

12

347146A1

WEAR STRIP

(lower wng)

4шт.

13

FD110025

SCREW,Flat Hd, Csk, M10 x 1.5 x 25mm

1шт.

14

NC110000

NUT

1шт.

14

WA100000

WASHER

1шт.

15

347117A1

PLATE (wing stop)

4шт.

16

FD108025

SCREW,Flat Hd, Csk, M8 x 1.25 x 25mm

8шт.

16

NC108000

NUT

8шт.

17

347251A1

CRANK

1шт.

18

347255A1

CLEVIS

4шт.

19

347258A1

ROD

tie

2шт.

20

NA220000

NUT

4шт.

21

347268A1

PIN

4шт.

22

FA108020

BOLT

4шт.

23

WB080000

WASHER

4шт.

24

86786000

BUSHING

BUSH

1шт.

25

WA300000

WASHER

1шт.

26

CE032000

CIRCLIP

1шт.

27

00138722

LUBE NIPPLE

NIPPLE Grease

5шт.

28

347119A1

COVER

2шт.

29

385419A1

CYLINDER

2.5"

1шт.

30

384028A1

MOUNT (proximity switch)

1шт.
