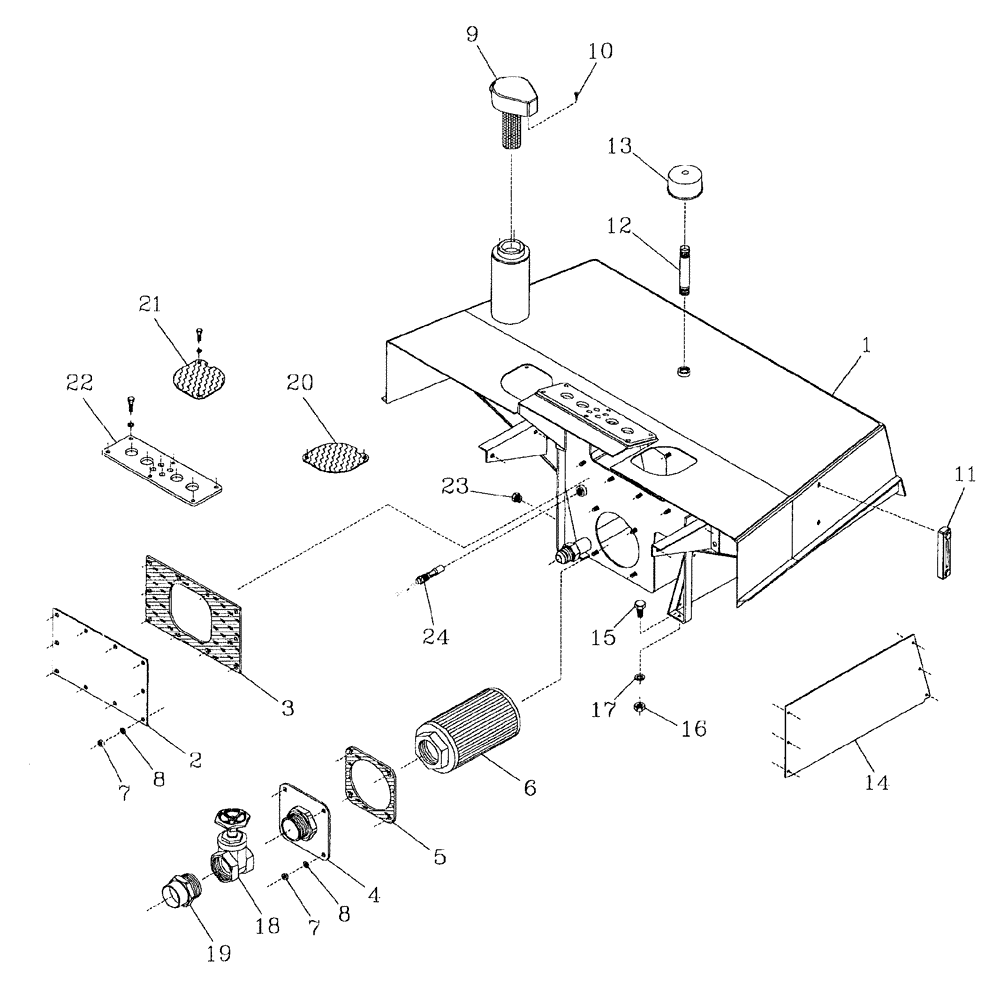

Запчасти Case IH AUSTOFT (A01[02]) - OIL TANK Mainframe & Functioning Components

1

372854A1

OIL RESERVOIR

OIL tank

1шт.

2

372209A1

COVER

1шт.

3

87252228

GASKET,6mm Thk

1шт.

4

372855A1

GLAND oil tank strainer

1шт.

5

372875A1

GASKET

GASKET

1шт.

6

00400057

HYDRAULIC OIL FILTER

STRAINER

1шт.

7

NA110000

NUT

14шт.

8

WB100000

WASHER

14шт.

9

00408555

FILLER CAP

1шт.

10

00605328

SCREW

3шт.

11

00101646

LEVEL GAUGE CONTROL

1шт.

12

87234260

PIPE

1шт.

13

00408554

ELEMENT

1шт.

14

372876A1

MUD COVER

1шт.

15

FA116025

BOLT

BOLT

4шт.

16

NA116000

NUT

4шт.

17

WB160000

SPRING WASHER

4шт.

18

00182168

SHUT-OFF VALVE

1шт.

19

373407A1

HOSETAIL

1шт.

20

374451A1

COVER accumulator (L.H.)

1шт.

21

374445A1

COVER accumulator (R.H.)

1шт.

22

374450A1

PLATE (hose gland)

1шт.

23

00407241

PLUG

PLUG

1шт.

24

394247A1

SWITCH

(oil level)

1шт.
