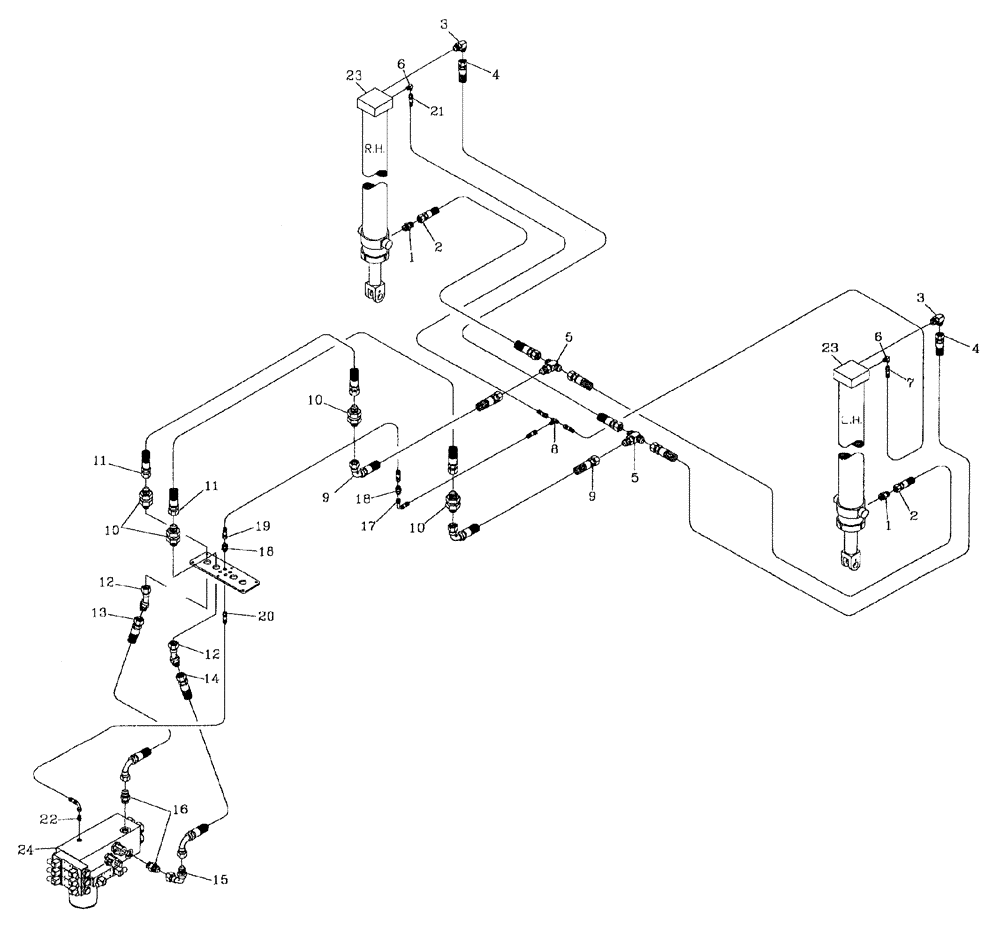

Запчасти Case IH AUSTOFT (B05[03]) - HYDRUALIC CIRCUIT-CROSS CONVEYOR LIFT Hydraulic Components & Circuits

1

00400168

HYD CONNECTOR

NIPPLE

2шт.

2

399611A1

HOSE

2шт.

3

00400096

HYD CONNECTOR

ELBOW

2шт.

4

399612A1

HOSE

2шт.

5

386571A1

B/H TEE

2шт.

6

00400238

HYD CONNECTOR

ELBOW

2шт.

7

87216969

HOSE ASSY.,6.35mm ID x 3550mm L, SAE 100R17

1шт.

8

218-804

TEE,9/16"-18, 37 Degree, Blkhd

B/H

1шт.

9

86599800

PISTON ROD/GLAND

HOSE

2шт.

10

00400067

HYD CONNECTOR

B/H NIPPLE

6шт.

11

386594A1

HOSE

2шт.

12

00407240

HYD CONNECTOR

BEND

2шт.

13

87254531

HOSE

1шт.

14

86310296

HOSE ASSY.

1шт.

15

00403944

HYD CONNECTOR

BEND

1шт.

16

00400234

HYD CONNECTOR

NIPPLE

2шт.

17

399614A1

HOSE

1шт.

18

00400070

HYD CONNECTOR

B/H NIPPLE

2шт.

19

399615A1

HOSE

1шт.

20

87219146

HOSE,6.35mm ID x 2150mm L, SAE 100R17

HOSE

1шт.

21

408072A1

HOSE

1шт.

22

00400223

HYD CONNECTOR

NIPPLE

1шт.

23

HYD. cylinder refer page B01.02

1шт.

24

HYD. valve refer page B03.01

1шт.
