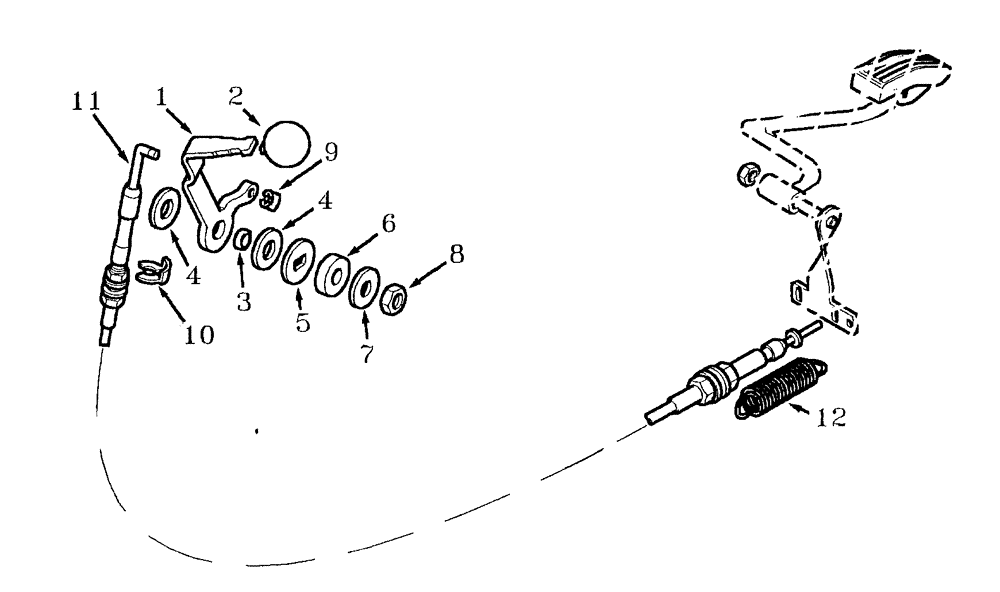

Запчасти Case IH AUSTOFT (C03[06]) - HAND THROTTLE Engine & Engine Attachments

1

238114A4

CONTROL LEVER

ASSY.

1шт.

2

T101396

RING

BUSHING

1шт.

3

1958759C1

KNOB

1шт.

4

1531493C1

FRICTION WASHER

2шт.

5

T101397

WASHER

1шт.

6

T101407

WASHER

(rubber)

1шт.

7

T101398

WASHER,8.5mm ID x 40mm OD x 3mm Thk

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

9

229667A1

CLIP,ELECTRICAL

1шт.

10

3223258R2

CIRCLIP

RING retaining

1шт.

11

239750A3

CABLE ASSY.,1285.2mm L

1шт.

12

248913A2

SPRING

1шт.
