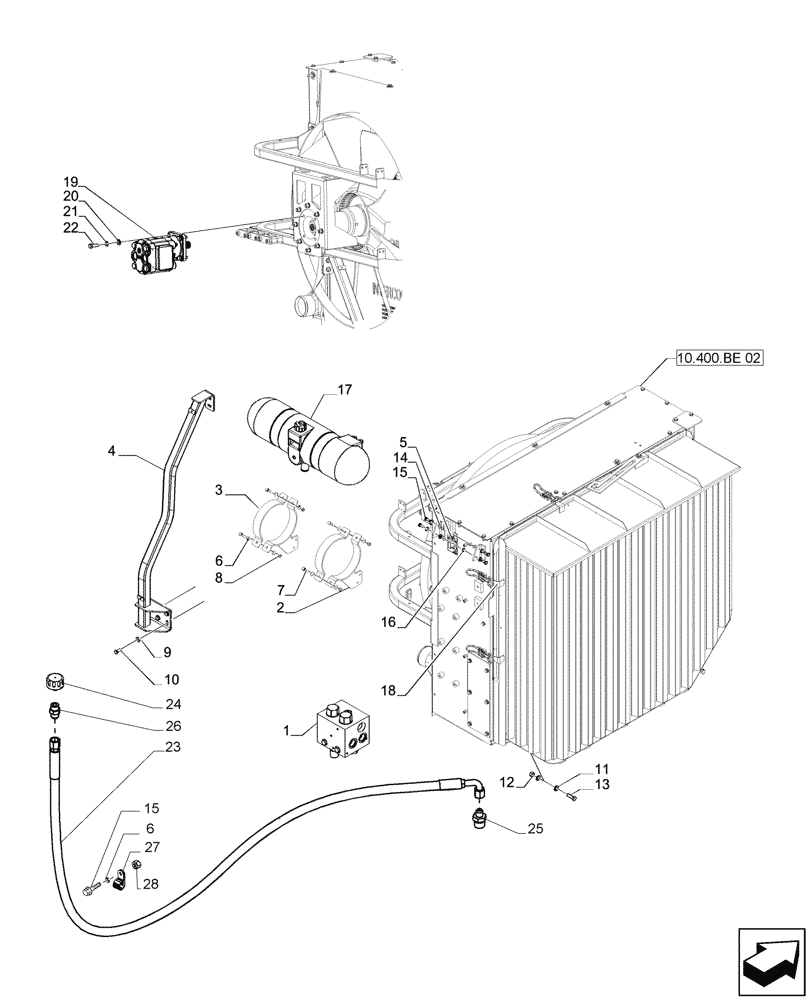

Запчасти Case IH A8800 (10.400.BE[01]) - RADIATOR, GROUP (10) - ENGINE

1

84245322

COUPLING BLOCK

Hydraulic Block Complete

1шт.

2

87720862

SUPPORT

2шт.

3

87715326

CLAMP,176mm ID

2шт.

4

84497982

SUPPORT

1шт.

5

84432981

DECAL

1шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

7

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

10

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

11

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

6шт.

12

9706685

NUT,M12 x 1.75, Cl 8

2шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

14

9706690

NUT,M8 x 1.25, Cl 8

4шт.

15

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

16

100016

NUT,M10 x 1.5, Cl 8

2шт.

17

84452234

RESERVOIR, COOLANT E

1шт.

18

100020

NUT,M16 x 2.0, Cl 8

2шт.

19

00409101

MOTOR, HYDRAULIC

1шт.

20

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

21

892-11012

LOCK WASHER,M12

4шт.

22

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

23

47786937

HYDRAULIC HOSE

1шт.

23

47680812

HYDRAULIC HOSE

1шт.

24

47794681

AIR FILTER

1шт.

25

22877

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 14 NPT

1шт.

26

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

27

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

28

437013

NUT

1шт.
