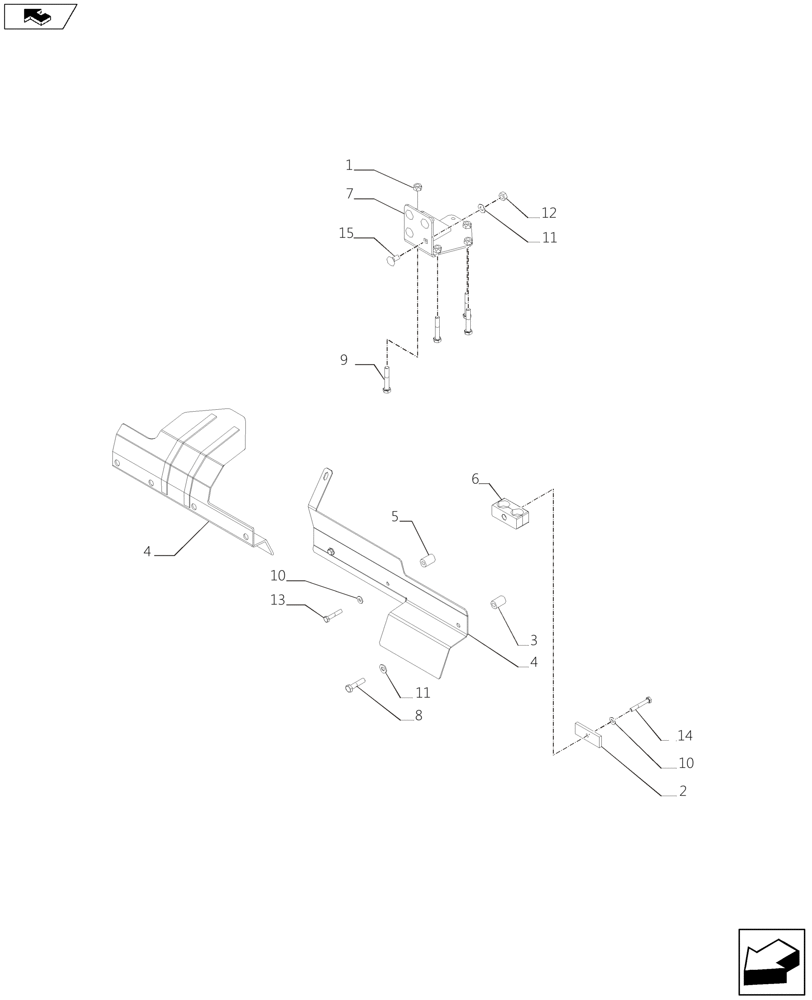

Запчасти Case IH A8800 (10.250.AC) - TURBINE, PROTECTOR (10) - ENGINE

1

100037

LOCK NUT,M10 x 1.5, Cl 8

4шт.

2

408523

PLATE

1шт.

3

87643882

SPACER,11mm ID x 20mm OD x 30mm L

1шт.

4

87607417

PLATE

1шт.

5

87518008

SPACER,9.5mm ID x 20mm OD x 30mm L

2шт.

6

409584

RETAINER

1шт.

7

87527731

SUPPORT

1шт.

8

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

9

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.

14

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

1шт.

15

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.
