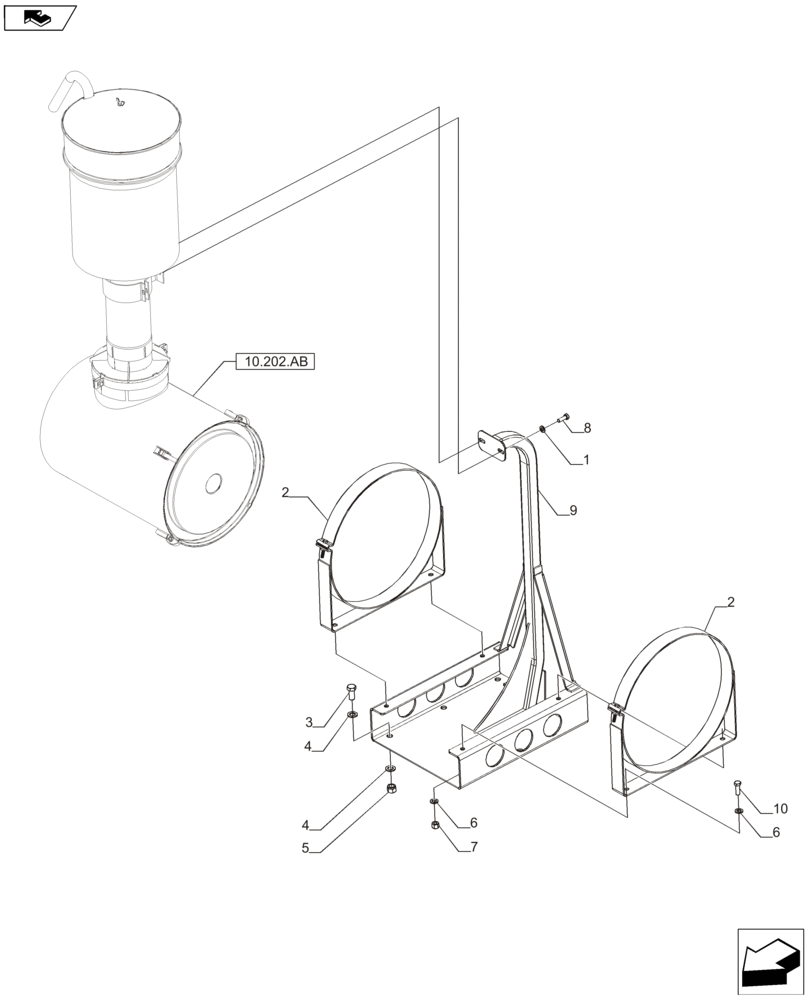

Запчасти Case IH A8800 (10.202.AH) - AIR FILTER, SUPPORT (10) - ENGINE

1

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

2

84485391

CLAMP

2шт.

3

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

4

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

12шт.

5

412066

NUT,M16 x 2.0, Cl 8

6шт.

6

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

8шт.

7

84278115

NUT

4шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

9

84562154

SUPPORT

1шт.

10

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

4шт.
