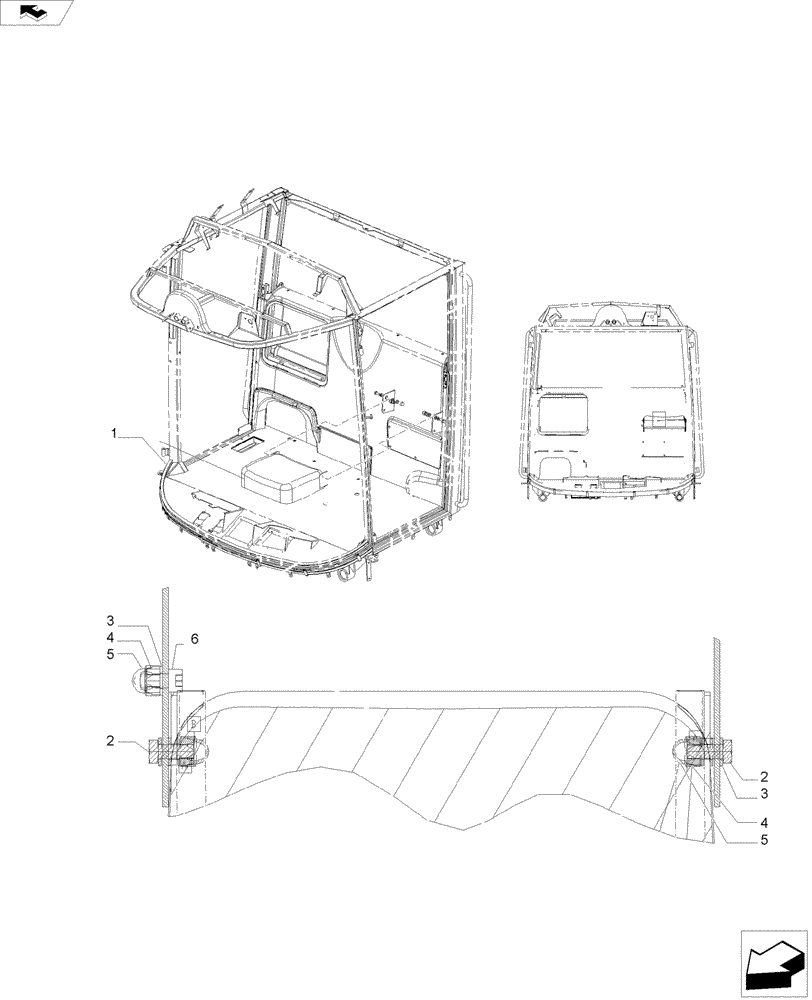

Запчасти Case IH A8800 (90.151.AC[01]) - TRAINNING SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84244098

INSTRUCTIONAL SEAT

1шт.

2

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

7шт.

4

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

5

747886

NUT

3шт.

6

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

1шт.
