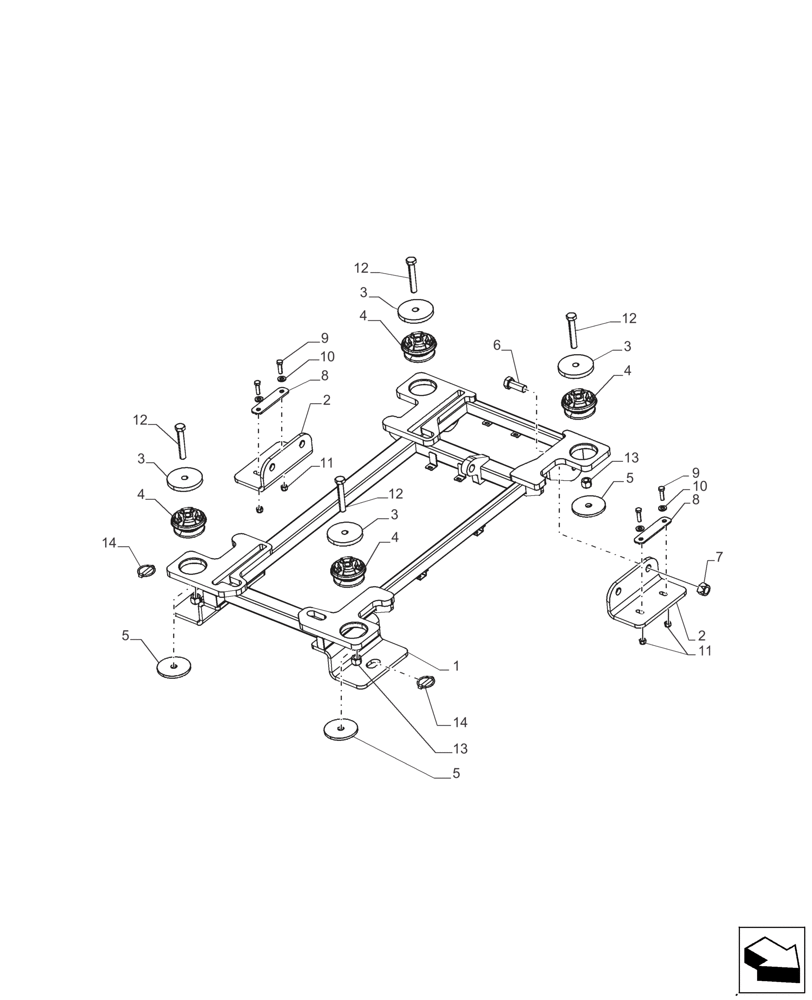

Запчасти Case IH A8800 (90.150.BG[04]) - BASE, ASSY, BUMPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47891102

1шт.

2

47470730

ARTICULATION

2шт.

3

84421169

SPACER,21mm ID x 120mm OD x 14.7mm L

4шт.

4

83983548

ISOLATOR,120mm OD x 64mm L

Front

4шт.

5

47856887

SPACER

4шт.

6

86639036

BOLT,Hex, M24 x 60mm, Cl 10.9, Full Thd

2шт.

7

86536986

NUT,M24 x 3, Cl 10

2шт.

8

430981A1

PLATE

2шт.

9

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

10

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

4шт.

11

100038

NUT,M12 x 1.75, Cl 8

4шт.

12

15989524

4шт.

13

12575111

LOCK NUT,M20 x 1.5, Cl 8

4шт.

14

606626

2шт.
