(90.124.AE) - DRIVER SEAT

Запчасти Case IH A8800 (90.124.AE) - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

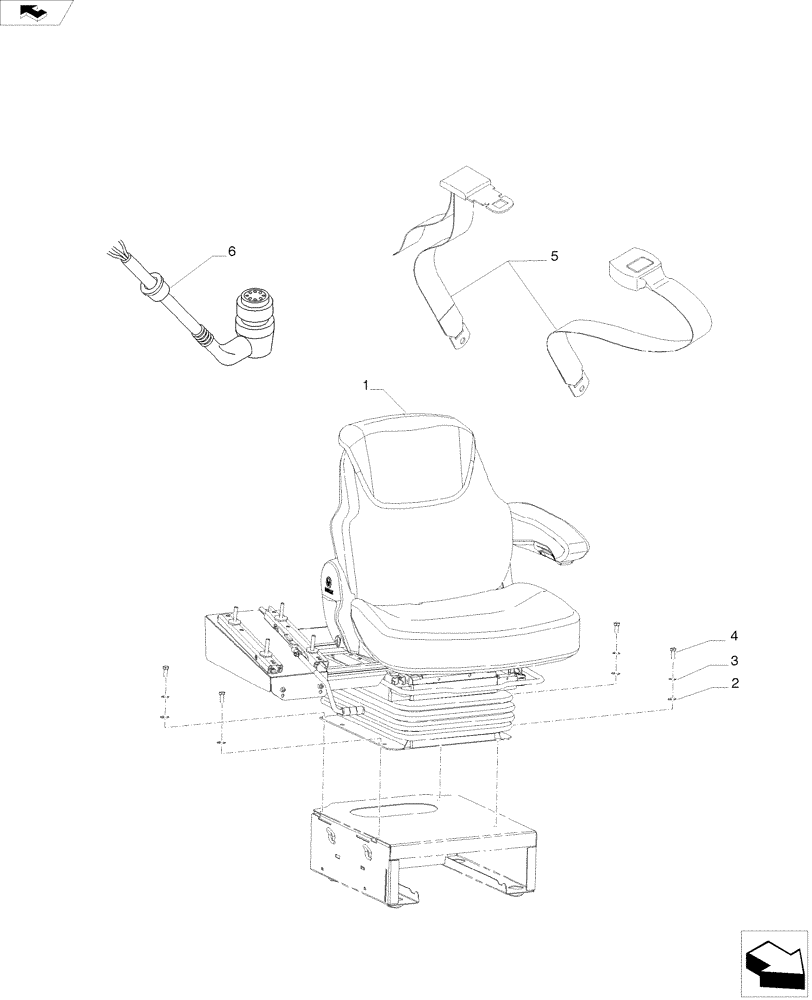

Схема запчастей Case IH A8800 - (90.124.AE) - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
4
1
6
5
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87751702

DRIVER SEAT

Assy

1шт.

2

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

3

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

4

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

5

84081887

SAFETY BELT ,50.80 mm W

1шт.

6

87697168

CABLE

1шт.

Выбрано товаров: 6
