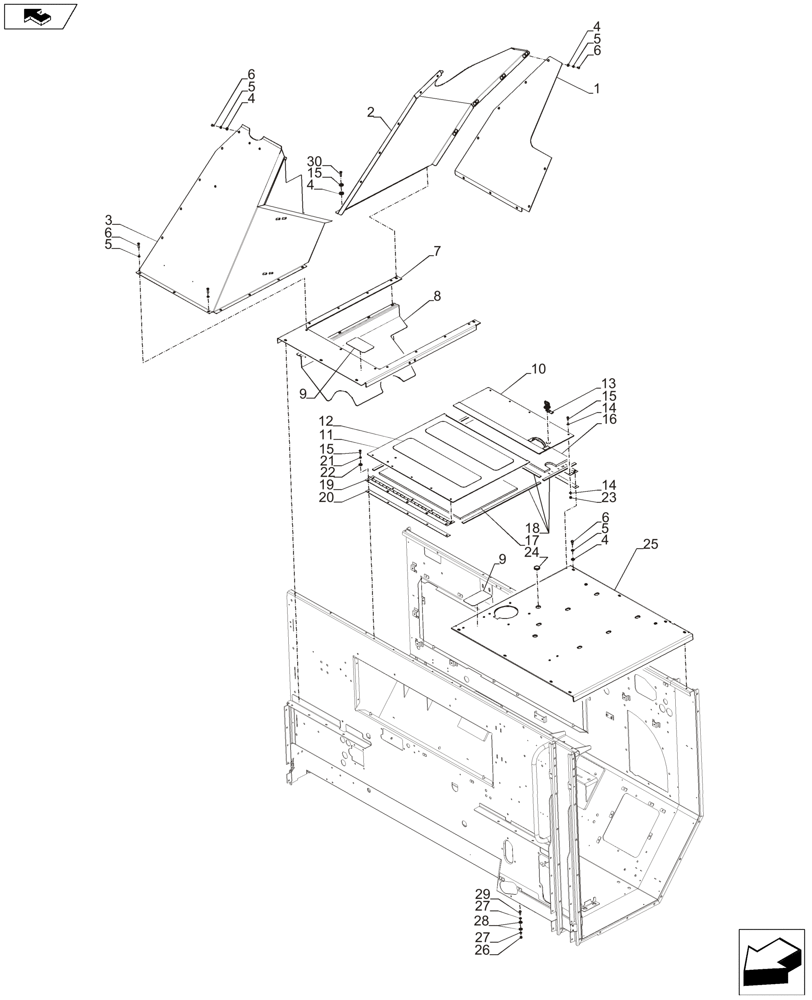

Запчасти Case IH A8800 (90.105.CS[06]) - ENGINE, HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84491213

COVER

1шт.

2

84554469

MOUNTING PLATE

1шт.

3

84362361

CHANNEL

1шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

95шт.

5

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

81шт.

6

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

77шт.

7

47570993

PLATE

1шт.

8

84382121

DEFLECTOR

1шт.

9

BN54103

PLATFORM

7шт.

10

47572603

COVER

1шт.

11

47572594

ACCESS COVER

1шт.

12

00154740

ADHESIVE STRIP

2шт.

13

84441355

LATCH

1шт.

14

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

26шт.

15

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

44шт.

16

84131375

INSULATOR

1шт.

17

84131376

INSULATING PLATE

1шт.

18

400987

SEAL

3шт.

19

87371200

HINGE

2шт.

20

87382993

STEEL PLATE

2шт.

21

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

28шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

23

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

10шт.

24

139952

GROMMET

4шт.

25

47416522

PLATE

1шт.

26

100038

NUT,M12 x 1.75, Cl 8

4шт.

27

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

28

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

12шт.

29

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

30

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.
