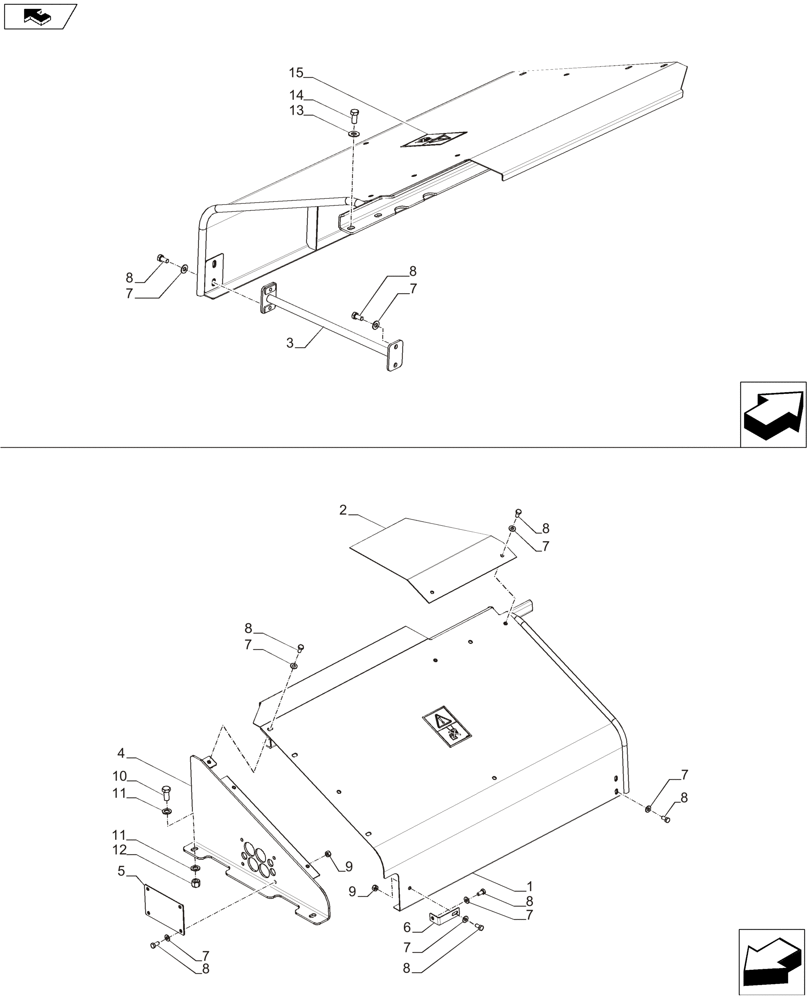

Запчасти Case IH A8800 (90.102.AA) - ENGINE, SUPPORT, CUSHION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84418399

GUARD

1шт.

2

84418405

RUBBER TRACK

1шт.

3

84418396

SUPPORT

1шт.

4

84418404

SUPPORT

1шт.

5

84482342

STEEL PLATE

1шт.

6

84418426

SUPPORT

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

16шт.

8

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

15шт.

9

84100524

NUT,M10 x 1.5, Cl 8

5шт.

10

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

11

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

12

832-10416

NUT,M16 x 2, Cl 8

2шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

14

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

15

84498498

DECAL

1шт.
