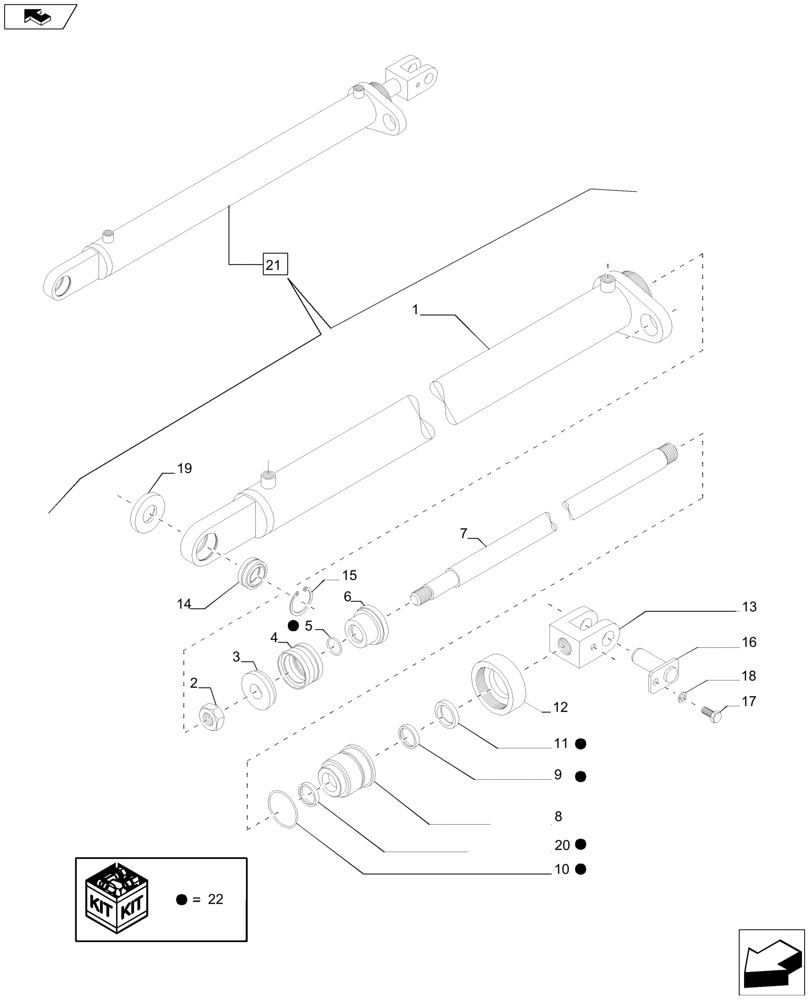

Запчасти Case IH A8800 (80.420.AB[03]) - HYDRAULIC CYLINDER (ELEVATOR LIFT) (80) - CROP STORAGE/UNLOADING

1

87446625

LINER, ENGINE CYLIND,63.5mm Bore Dia

LH

1шт.

1

87446626

LINER, ENGINE CYLIND

RH

1шт.

2

25-1114

NUT,7/8"-14, G5

1шт.

3

86787900

PISTON

1шт.

4

100716

BREATHER

1шт.

5

NLS

NO LONGER SERVICED

1шт.

6

86787800

PISTON

1шт.

7

87236364

SHAFT

1шт.

8

84212472

CYLINDER HEAD

1шт.

9

87562277

GASKET

1шт.

10

00100106

O-RING

1шт.

11

100675

CONNECTION

1шт.

12

86930200

NUT

1шт.

13

87244758

CYLINDER

1шт.

14

00141400

BEARING

1шт.

15

800-2142

SNAP RING,M42, Int

1шт.

16

87237362

PIN,25mm OD x 75mm L

1шт.

17

00601495

BOLT

1шт.

18

00605827

WASHER

1шт.

19

87231581

SPACER

1шт.

20

84203852

SEALING RING COLLAR

1шт.

21

87446623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 914mm Stroke

Assy LH Incl 1 - 15, 20, 22

1шт.

21

87446624

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod

Assy RH Incl 1 - 15, 20, 22

1шт.

22

84207314

SEAL KIT

Incl 5, 10, 11, 20

1шт.
