Запчасти Case IH A8800 (80.420.AB[02]) - HYDRAULIC CYLINDER (ELEVATOR SLEW) (80) - CROP STORAGE/UNLOADING

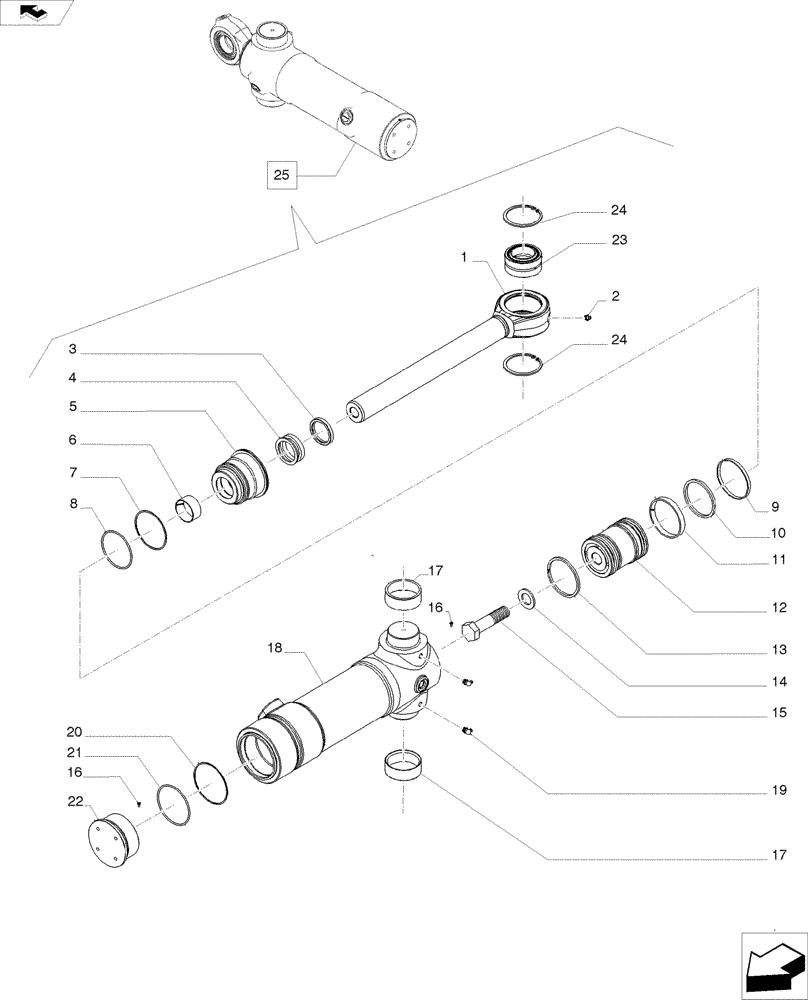

Схема запчастей Case IH A8800 - (80.420.AB[02]) - HYDRAULIC CYLINDER (ELEVATOR SLEW) (80) - CROP STORAGE/UNLOADING
16
13
16
7
15
9
11
21
24
24
17
17
2
4
12
19
home
5
22
14
3
1
20
23
18
25
8
6
10

Артикул

Название

Примечание

Количество

1

87413722

PISTON ROD

Assy

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

3

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

1шт.

4

122535A1

SEAL KIT

1шт.

5

188032A2

GLAND,95.3mm Bore, 50.8mm Rod, 82.4mm W

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

1шт.

7

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

1шт.

8

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

9

1340762C1

SEAL,92mm ID x 96.5mm OD x 6.9mm Thk

1шт.

10

1340763C1

RING,Square, 5.28mm Thk x 81.74mm ID

1шт.

11

1980245C1

SEALING RING,89mm ID x 95.2mm OD x 12.5mm Thk

1шт.

12

188034A2

PISTON

1шт.

13

191252A1

SEALING RING,85.9mm ID x 95.3mm OD x 4.7mm Thk

1шт.

14

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

15

28-1664

BOLT,Hex, 1" - 14 x 4", Gr 8

1шт.

16

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

2шт.

17

124568A2

RING,69.92mm ID x 77mm OD x 28mm L

2шт.

18

188028A2

TUBE,527.7 mm Length

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

20

G109299

BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk

1шт.

21

238-5239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro

1шт.

22

188035A1

CYLINDER END CAP

1шт.

23

137248A1

RING,50.79mm ID x 80.96mm OD x 44.45mm W

1шт.

24

100-21315

SNAP RING,3.156", Int, #315

2шт.

25

84170841

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

Assy, Incl 1 - 24

1шт.

Выбрано товаров: 25
