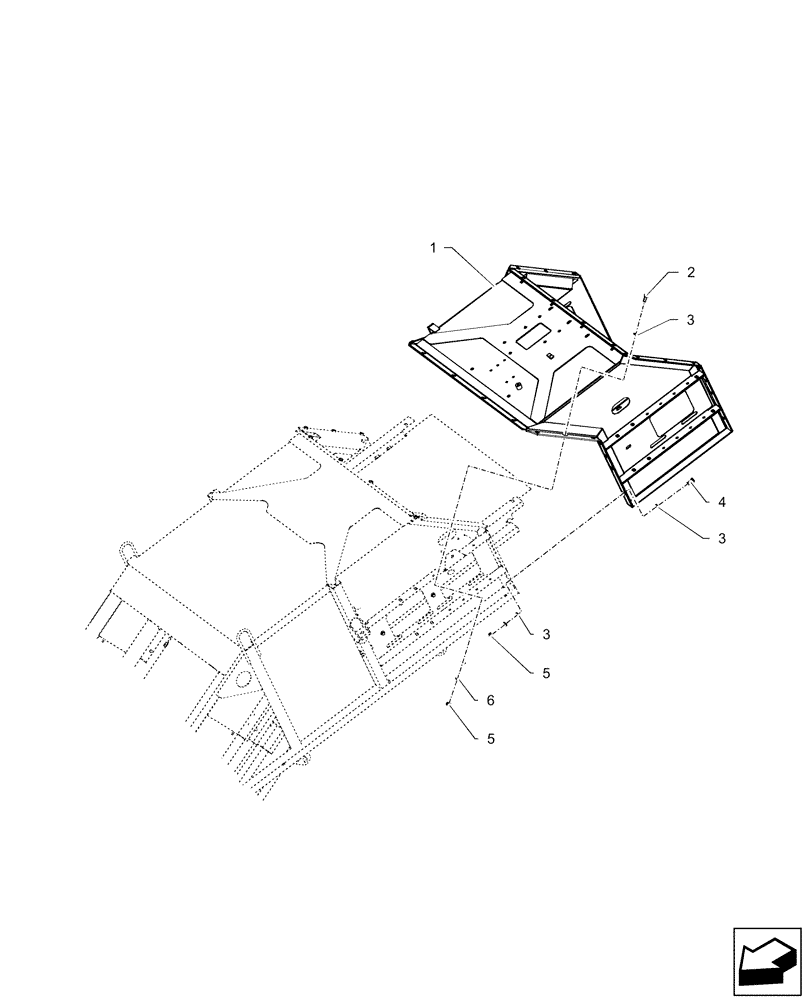

Запчасти Case IH A8800 (80.420[03]) - ELEVATOR EXTENSION 600 - MY16 (80) - CROP STORAGE/UNLOADING

1

47947250

ELEVATOR EXTENSION

1шт.

2

BER43139

BOLT

14шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

2шт.

5

86500689

NUT,M10 x 1.5, Cl 10

16шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

16шт.
