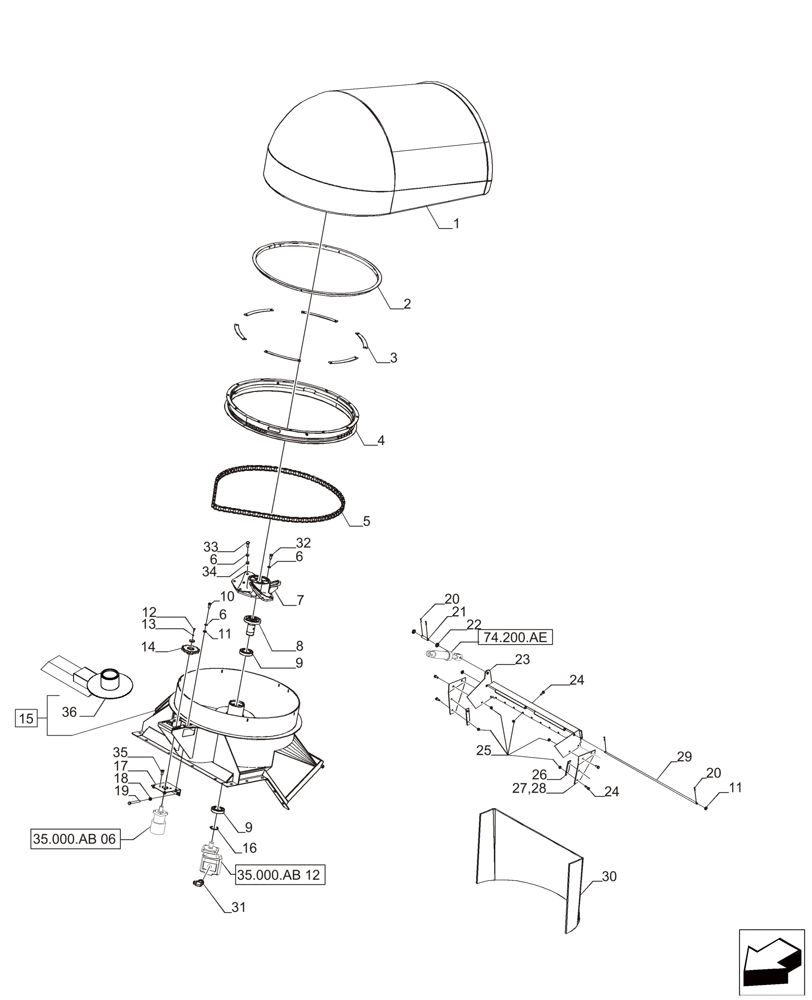

Запчасти Case IH A8800 (74.200.AA) - SECONDARY EXTRACTOR, HOOD, SLEWING/SWING (74) - CLEANING

1

87685351

FOLDING TOP

1шт.

2

86569800

RING

1шт.

3

87250294

MOUNTING PARTS

6шт.

4

87150900

CHANNEL

1шт.

5

87159600

CHAIN (AG)

1шт.

6

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

22шт.

7

87240269

HUB

1шт.

8

86304126

SPLINED COUPLING

1шт.

9

00140309

BALL BEARING

2шт.

10

426-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 8

4шт.

11

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

12

281032

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8, Full Thd

1шт.

13

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

1шт.

14

87150500

SPROCKET ASSY.

Assy

1шт.

15

0054000200

HOOD

Incl 36

1шт.

16

327911

CIRCLIP,55mm ID

1шт.

17

87151500

PLATE

1шт.

18

9803187

NUT,1/2"-13, G8

2шт.

19

86508729

BOLT,Hex, 1/2" - 13 x 4", Gr 8

2шт.

20

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

4шт.

21

82087400

PIN,15.88mm OD x 68mm L

2шт.

22

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

23

87229056

FLAP

1шт.

24

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

16шт.

25

86500689

NUT,M10 x 1.5, Cl 10

16шт.

26

87229054

STRIP,25mm W x 130mm L x 5.2mm Thk

2шт.

27

87231906

BACK PLATE

LH

1шт.

28

87231907

BACK PLATE

RH

1шт.

29

86937500

ROD,12mm OD x 1032mm L

1шт.

30

87229055

RUBBER

1шт.

31

00400246

HYD CONNECTOR

2шт.

32

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

6шт.

33

414-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

9шт.

34

86539262

NUT,1/2"-20, Gr 8

12шт.

35

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

36

87241702

SUPPORTING ARM

1шт.
