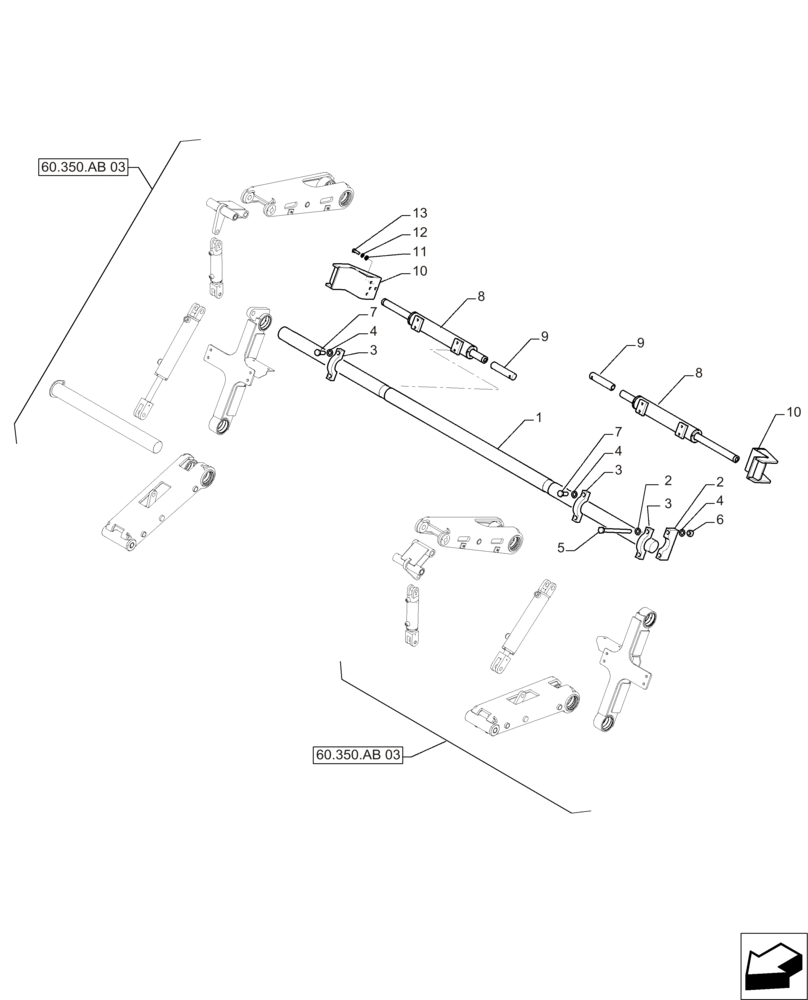

Запчасти Case IH A8800 (60.350.AB[04]) - CROP DIVIDER, LINK (60) - PRODUCT FEEDING

1

84589947

SHAFT

1шт.

2

47460041

HOLDER

2шт.

3

47460040

HOLDER

4шт.

4

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

12шт.

5

86639168

BOLT,Hex, M20 x 250mm, Cl 10.9

4шт.

6

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

4шт.

7

9843590

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

8

47460890

CYLINDER

2шт.

9

47578257

PIN

2шт.

10

47609393

SUPPORT

2шт.

11

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

12

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

13

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

8шт.
