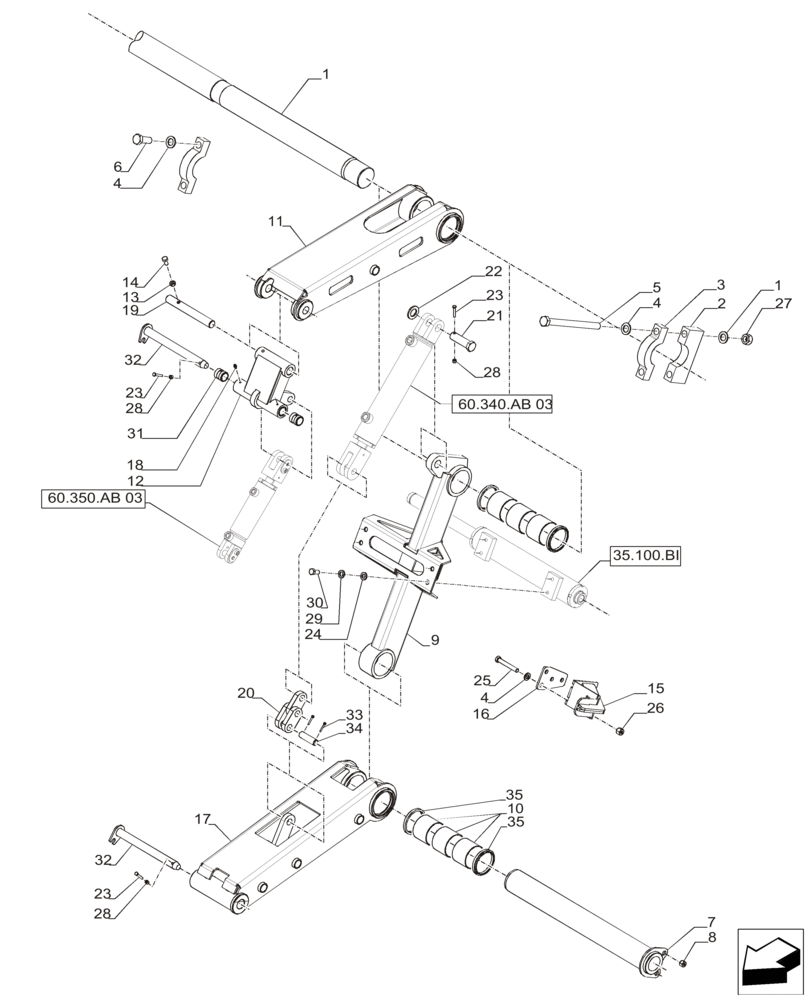

Запчасти Case IH A8800 (60.350.AB[01]) - LIFT ARM, CROP DIVIDER (60) - PRODUCT FEEDING

1

84589947

SHAFT

1шт.

2

47460041

HOLDER

2шт.

3

47460040

HOLDER

4шт.

4

140021

WASHER,22mm ID x 37mm OD x 3mm Thk

12шт.

5

86639168

BOLT,Hex, M20 x 250mm, Cl 10.9

4шт.

6

9843590

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

7

47416525

SHAFT

2шт.

8

12577221

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 10, ZND

4шт.

9

47464801

SUPPORT

RH

1шт.

9

47464784

SUPPORT

LH

1шт.

10

47478199

BUSHING,75mm ID x 80mm OD x 60mm L

2шт.

11

47466646

SUPPORT

2шт.

12

84300377

BELLCRANK

2шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

15

47460042

SUPPORT

2шт.

16

47485953

PLATE

2шт.

17

47466647

SUPPORT

2шт.

18

138722

SHIM

6шт.

19

87255126

PIN,25.4mm OD x 205mm L

2шт.

20

84474230

CHAIN

6шт.

21

87230605

PIN,25.4mm OD x 92mm L

2шт.

22

895-11024

WASHER,M24 x 44 x 4

2шт.

23

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

6шт.

24

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

16шт.

25

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

6шт.

26

12577511

NUT,M12 x 1.75, Cl 8

6шт.

27

82020635

NUT,Prevailing Torque, M20 x 2.5 x 20mm, Cl8

4шт.

28

832-10406

NUT,M6 x 1, Cl 8

6шт.

29

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

8шт.

30

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

8шт.

31

87255101

BUSHING,25.55mm ID x 31.75mm OD x 31.75mm L

4шт.

32

87254790

PIN,25.4mm OD x 285mm L

4шт.

33

130007

COTTER PIN,M4 x 25

4шт.

34

87250196

PIN,20mm OD x 70mm L

2шт.

35

47478144

OIL SCRAPER RING +0.

2шт.
