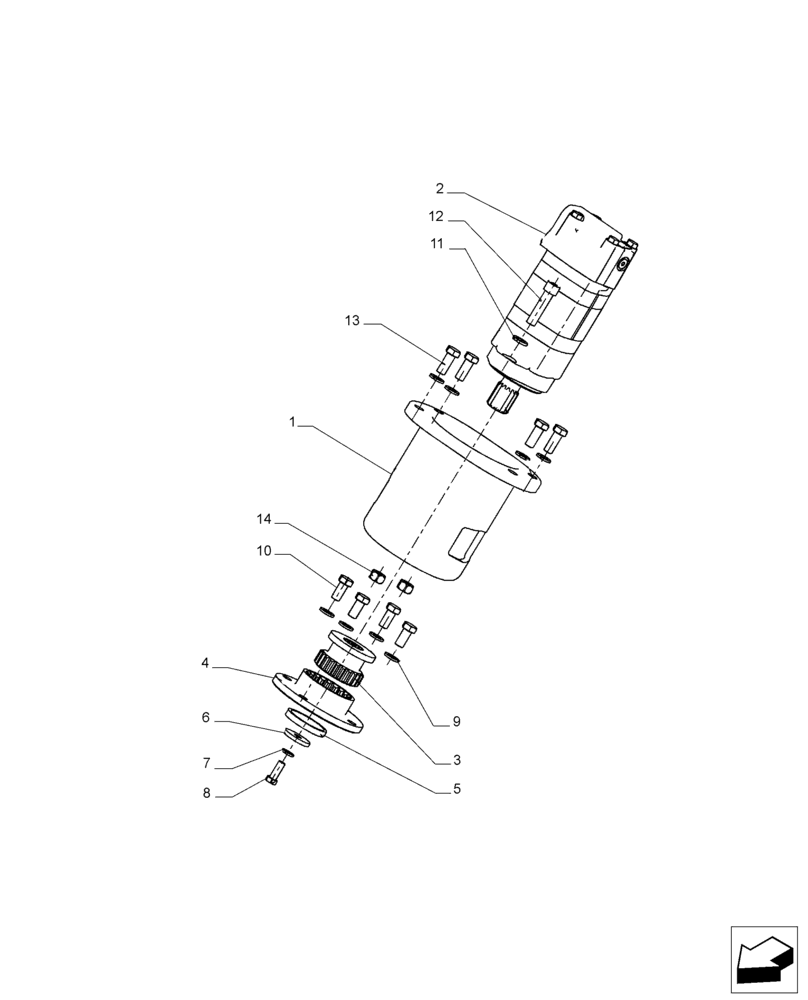

Запчасти Case IH A8800 (60.350.AA[10]) - CROP DIVIDER, HYDRAULIC MOTOR (60) - PRODUCT FEEDING

1

87096600

HOUSING

1шт.

2

47671154

HYDRAULIC MOTOR

HIGHT PRESSURE SEAL

1шт.

2

404335

HYDRAULIC MOTOR,393.29CC

1шт.

3

86701200

GEAR

1шт.

4

86700800

ADAPTER

1шт.

5

87431246

SPACER

1шт.

6

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

8

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

9

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

10

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

12

86570628

HEX SOC SCREW,1/2" - 13 x 2"

2шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

4шт.

14

87632742

NUT

2шт.
