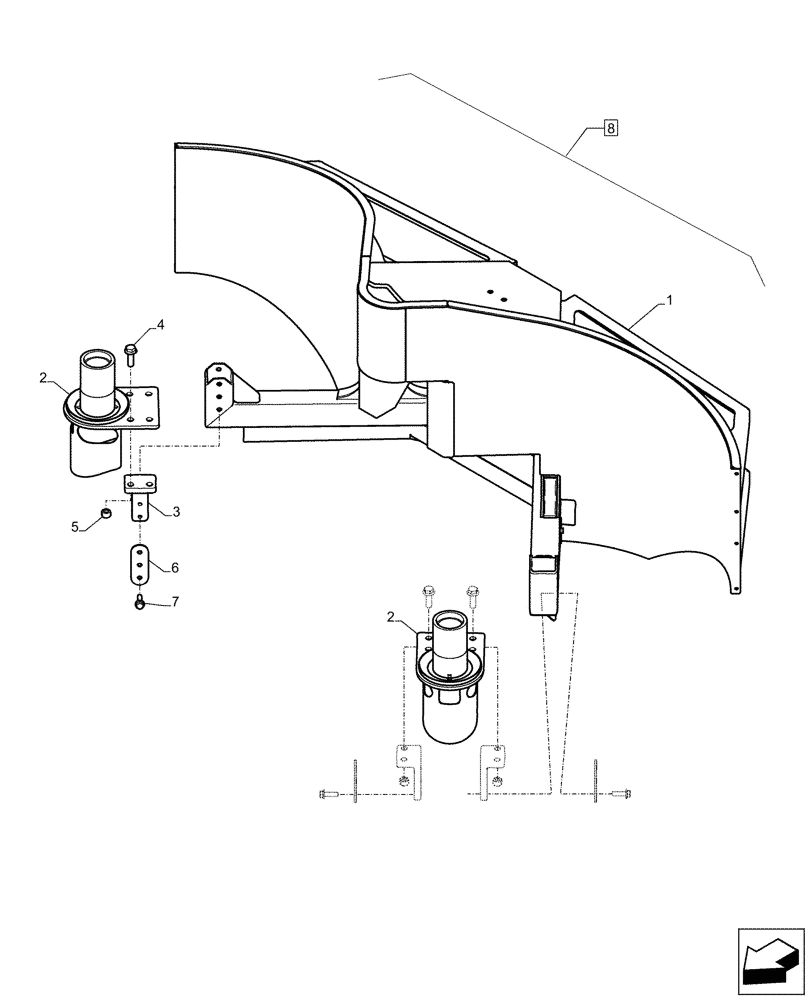

Запчасти Case IH A8800 (60.340.AD[03]) - STANDARD TOPPER (60) - PRODUCT FEEDING

1

47955022

FRAME

1шт.

2

47970509

HOUSING

2шт.

3

87491402

SUPPORTING ARM

4шт.

4

857-16050

BOLT,Hvy Hex, M16 x 50mm, Cl 10.9

8шт.

5

829-1416

NUT,M16, Cl 10

8шт.

6

87491441

FIXING PLATE

4шт.

7

87695413

BOLT,M12 x 51.8mm, Cl 10.9

12шт.

8

47970518

Incl 1 - 7

FRAME

13шт.
