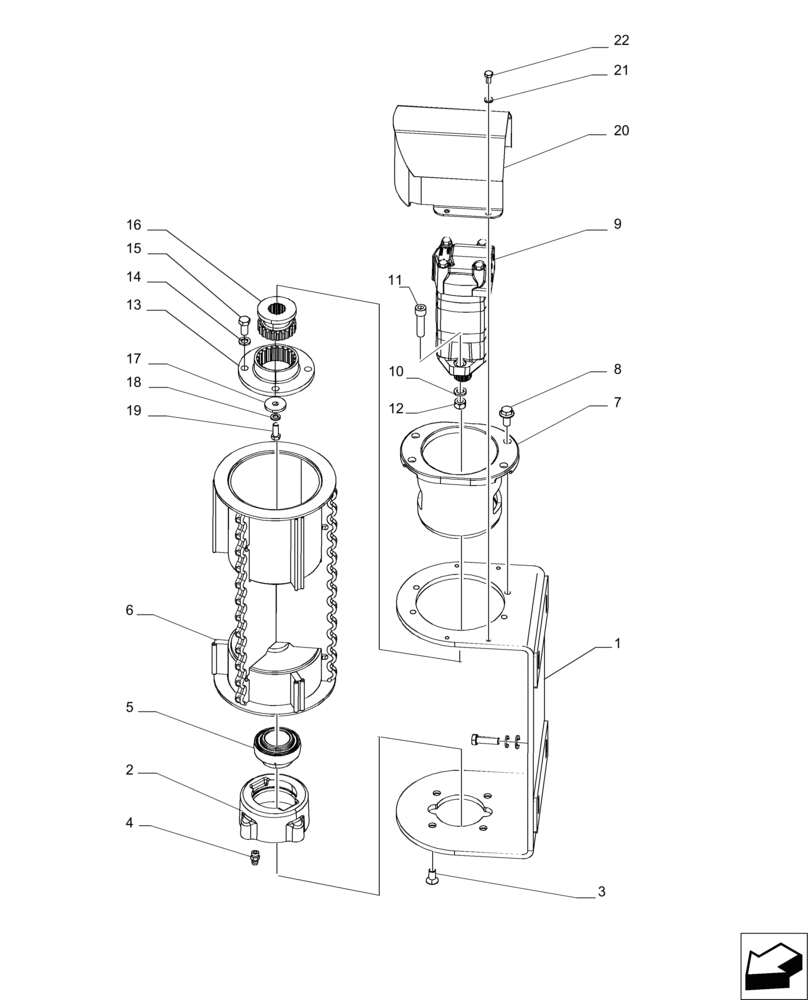

Запчасти Case IH A8800 (60.101.AC[03]) - FEED ROLLER - MY2015 (60) - PRODUCT FEEDING

1

47605171

SUPPORT

1шт.

2

87213555

HOUSING, BEARING,87 mm ID x 62 mm

1шт.

3

605425

SCREW

4шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

1шт.

5

NLS

NO LONGER SERVICED

1шт.

6

47605181

ROLLER

1шт.

7

87217094

HOUSING

1шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

9

404335

HYDRAULIC MOTOR,393.29CC

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

11

86570628

HEX SOC SCREW,1/2" - 13 x 2"

2шт.

12

87632742

NUT

2шт.

13

86700800

ADAPTER

1шт.

14

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

4шт.

15

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

16

86701200

GEAR

1шт.

17

86778400

WASHER,10.5mm ID x 38.5mm OD x 5.15mm Thk

1шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

19

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

20

47598692

PROTECTOR

1шт.

21

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

22

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.
