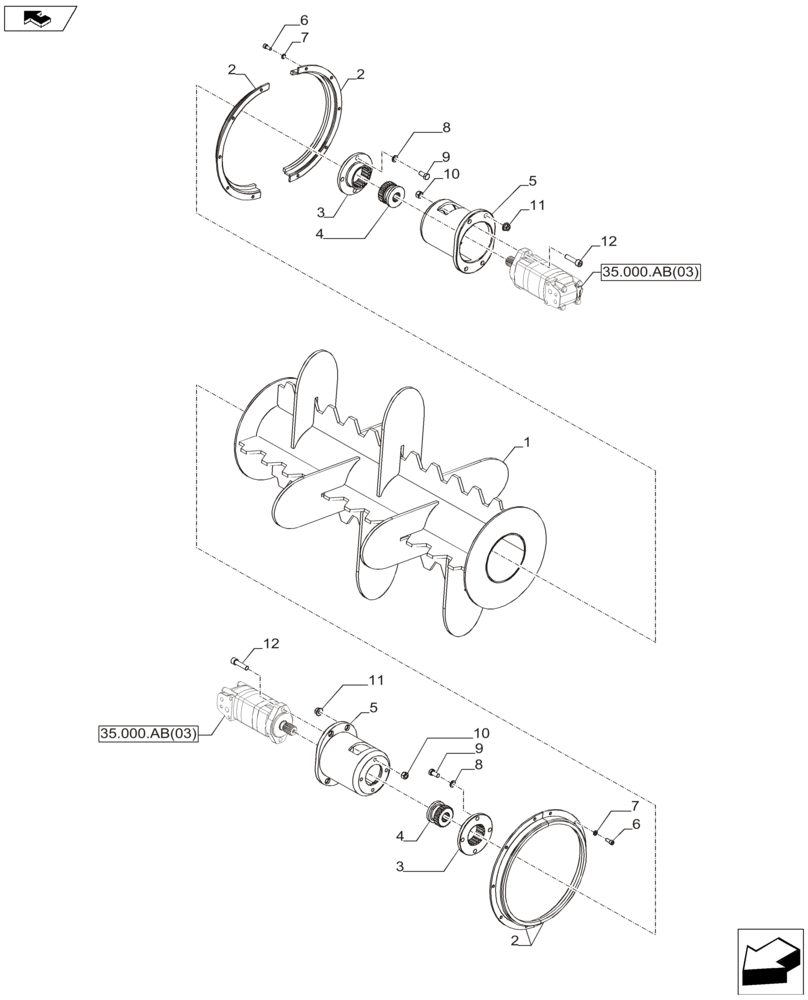

Запчасти Case IH A8800 (60.101.AC[02]) - FEED ROLLER (60) - PRODUCT FEEDING

1

47371359

FEED ROLLER

1шт.

2

47371410

SHIELD

4шт.

3

86700800

ADAPTER

2шт.

4

86701200

GEAR

2шт.

5

87096600

HOUSING

2шт.

6

120228

HEX SOC SCREW,M8 x 20mm, Cl 8.8, Full Thd

20шт.

7

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

20шт.

8

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

9

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

8шт.

10

87632742

NUT

4шт.

11

825-51412

FLANGE NUT,M12, Flg Ser

8шт.

12

86570628

HEX SOC SCREW,1/2" - 13 x 2"

4шт.
