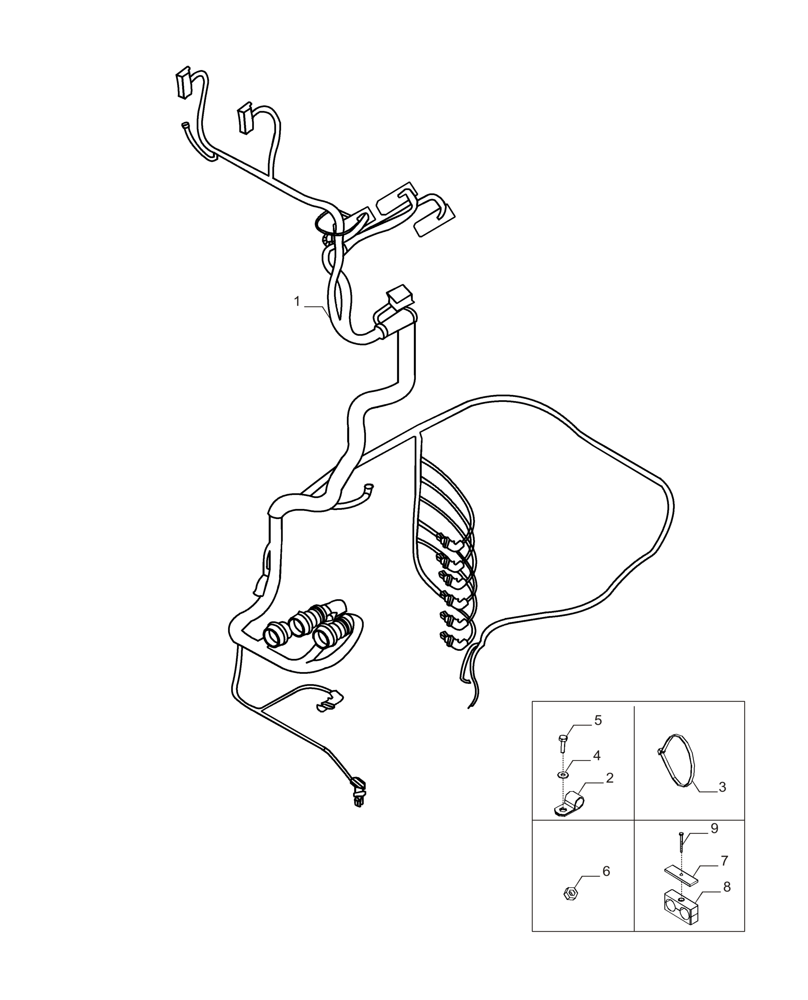

Запчасти Case IH A8800 (55.100.AF[06]) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48050292

WIRE HARNESS

1шт.

2

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

87010656

CLAMP,17.5mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

2

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

2

87016869

CLAMP,31.7mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

2

858956

CLAMP,11.1mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

2

700514

CLAMP,3.8mm, Coat, M8 Bolt

2шт.

2

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

3

86566990

CABLE TIE,292mm OAL x 4.8mm W

8шт.

4

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

6

9706690

NUT,M8 x 1.25, Cl 8

1шт.

7

405228

PLATE

2шт.

8

409580

CLAMP

2шт.

9

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

2шт.
