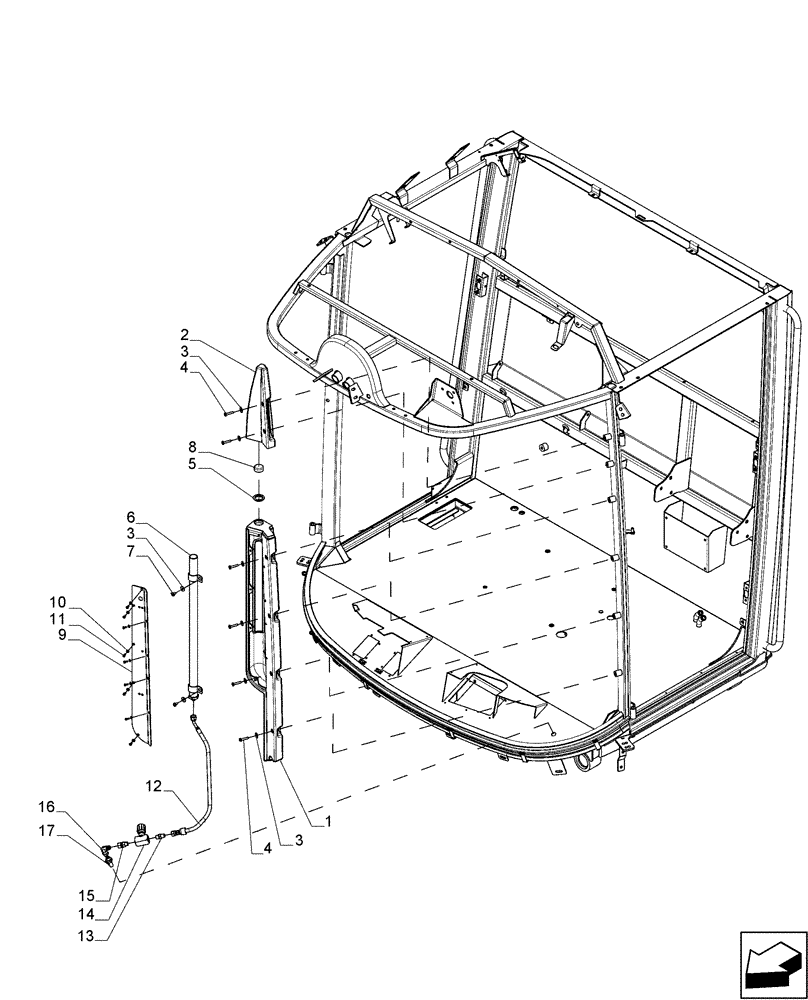

Запчасти Case IH A8800 (39.100.AY[01]) - VISUAL SCALE - MY2012 (39) - FRAMES AND BALLASTING

1

84408483

PANEL

1шт.

2

84412145

PANEL

1шт.

3

84007539

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

4

87560737

SCREW,Phil Pan Hd, M6 x 30mm, Cl 4.8, Full Thd

6шт.

5

84408883

GROMMET

1шт.

6

84408479

TUBE

1шт.

7

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

2шт.

8

84412143

TOP

29 mm

1шт.

9

84410479

ACCESS COVER

1шт.

10

14496321

WASHER

9шт.

11

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

9шт.

12

84410581

HOSE,6.35mm ID x 600mm L, SAE 30R2

1шт.

13

00404763

HYD CONNECTOR

1шт.

14

00408321

VALVE

1шт.

15

0000948798

ADAPTER

1шт.

16

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

17

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.
