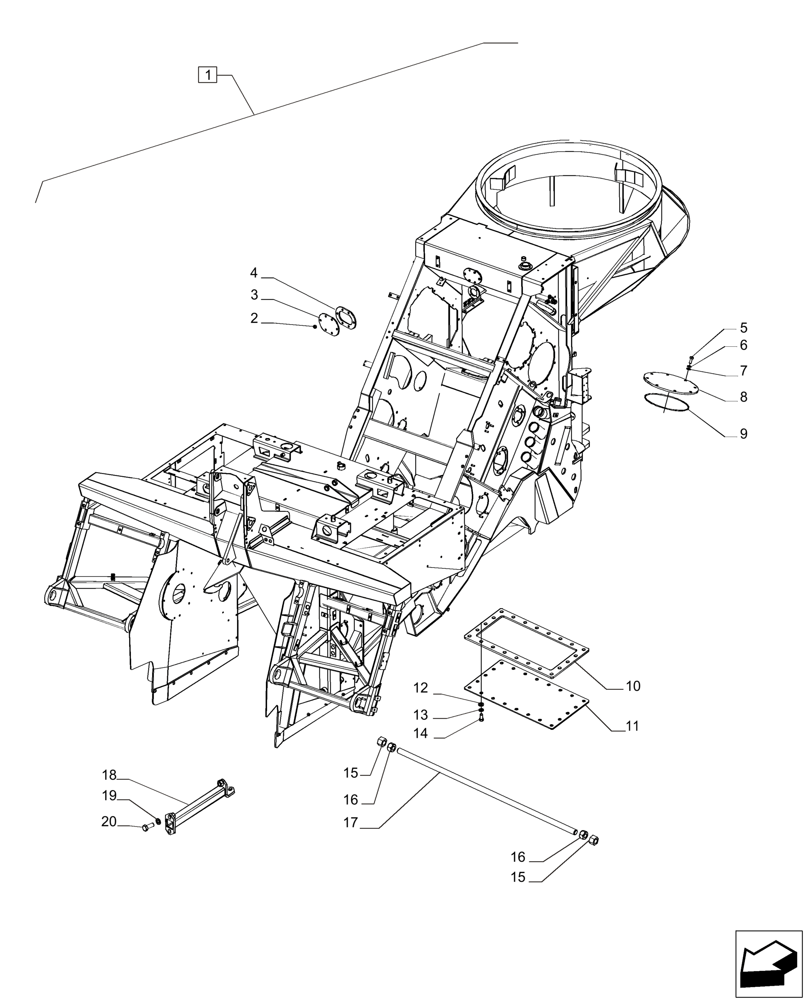

Запчасти Case IH A8800 (39.100.AB[03]) - FRAME - MY 2017 (39) - FRAMES AND BALLASTING

1

48058447

FRAME

ASSY, incl 2 - 20

1шт.

2

425-105

NUT,5/16"-18, G5

6шт.

3

87239697

COVER ASSY

1шт.

4

87247334

GASKET,6mm Thk

1шт.

5

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

24шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

24шт.

7

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

24шт.

8

87231717

COVER PLATE

3шт.

9

14467980

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

3шт.

10

445206A1

GASKET,8mm Thk

1шт.

11

445207A1

PLATE

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

20шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

20шт.

14

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

20шт.

15

9837788

NUT,M24 x 3, Cl 8.8

2шт.

16

85700123

NUT,M24, Cl 8

2шт.

17

47485904

SHAFT

1шт.

18

87683576

BASE

1шт.

18

87683577

BASE

1шт.

19

86642462

LOCK WASHER,M20

6шт.

20

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

6шт.
