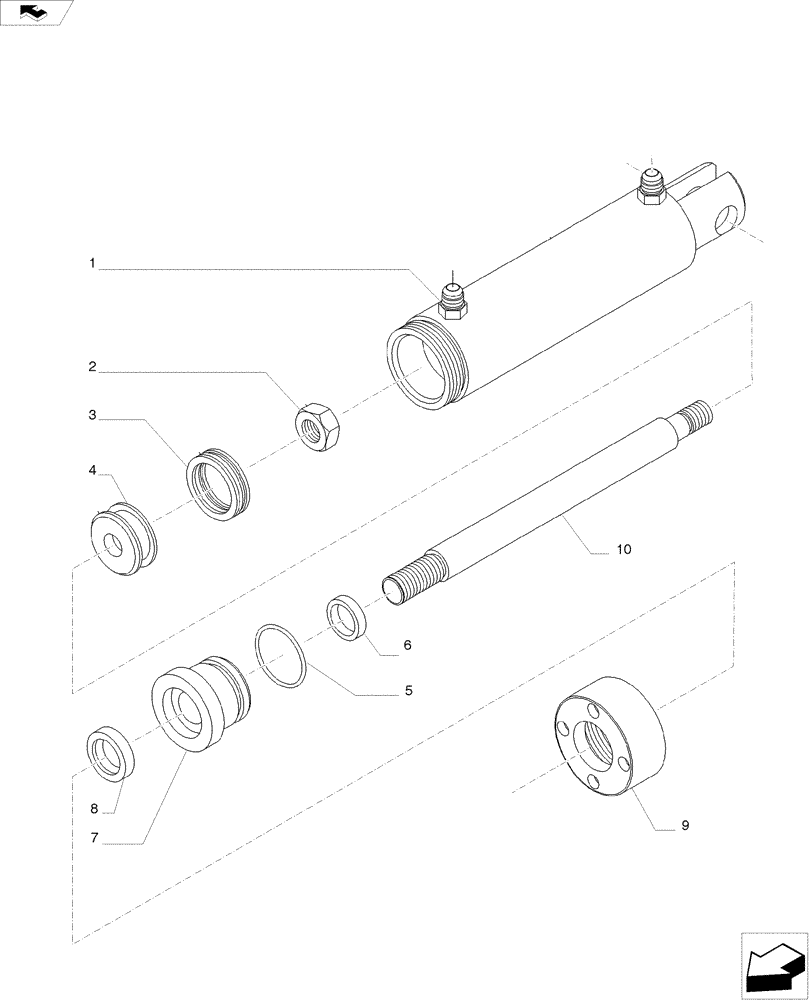

Запчасти Case IH A8800 (35.565.AC[01]) - HYDRAULIC CYLINDER (SIDETRIM KNIVES STD&45°) (35) - HYDRAULIC SYSTEMS

1

87404770

CYLINDER

LH 45°

1шт.

1

87404771

CYLINDER,44.45mm Bore Dia

RH 45°

1шт.

2

00605804

NUT

1шт.

3

00100728

OIL SEAL

1шт.

4

87231206

PISTON

1шт.

5

00100027

O-RING

1шт.

6

87463205

SEAL

1шт.

7

87463203

PISTON,54mm Bore, 34.95mm Rod, 40.5mm W

1шт.

8

00100552

OIL SEAL

1шт.

9

87213507

NUT

1шт.

10

87463167

ROD

45°

1шт.

11

87463166

HYDRAULIC CYLINDER,Double Acting, 22.23mm Rod

Assy LH 45°

1шт.

11

87463165

HYDRAULIC CYLINDER

Assy RH 45°

1шт.
