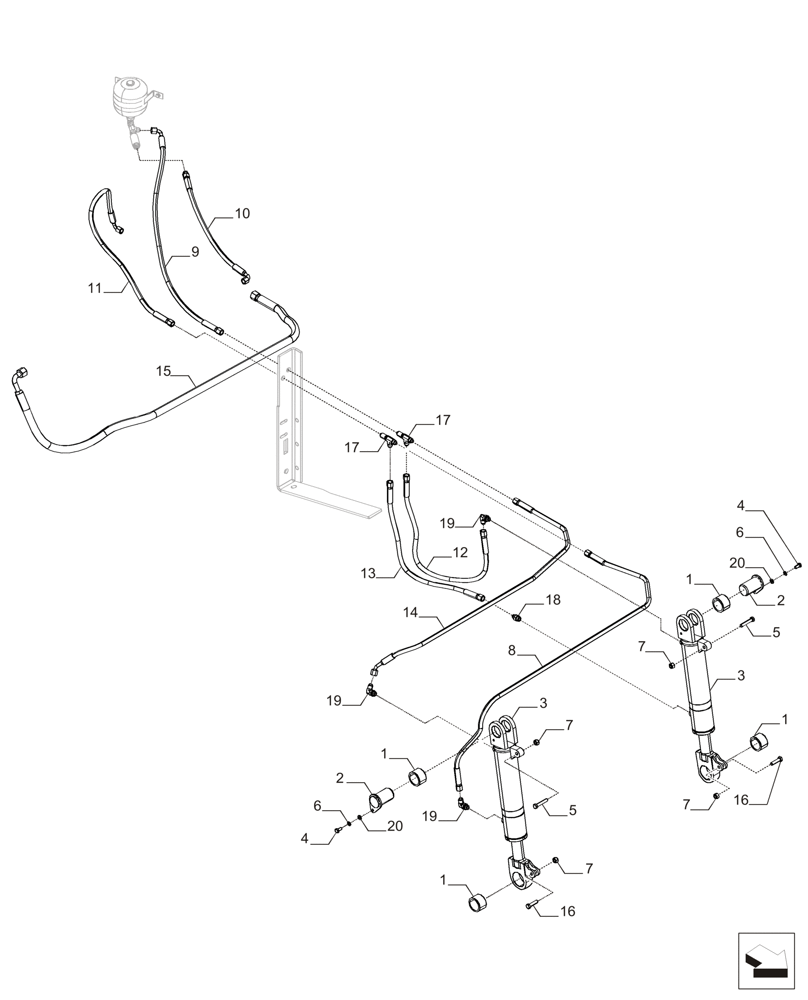

Запчасти Case IH A8800 (35.000.AA[39]) - HYDRAULIC SYSTEM, SUSPENSION - MY 2017 (35) - HYDRAULIC SYSTEMS

1

135248A1

BUSHING,50.94mm ID x 63.5mm OD x 38.1mm L

4шт.

2

450670A1

PIN,50.4mm OD x 90mm L

2шт.

3

48061523

HYDRAULIC CYLINDER

2шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

5

9706693

BOLT,M12 x 60mm, Cl 8.8

2шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

7

NC112000

NUT

4шт.

8

87401092

HOSE,9.53mm ID x 1870mm L, SAE 100R17

1шт.

9

374256A1

HOSE,9.53mm ID x 1140mm L, SAE 100R17

1шт.

10

87256256

HOSE ASSY.

1шт.

11

87401088

HOSE,9.53mm ID x 980mm L, SAE 100R17

1шт.

12

87401089

HOSE,9.53mm ID x 970mm L, SAE 100R17

1шт.

13

87401090

HOSE,9.53mm ID x 800mm L, SAE 100R17

1шт.

14

87401091

HOSE,9.53mm ID x 1520mm L, SAE 100R17

1шт.

15

47913221

HOSE

1шт.

16

120080

BOLT,Hex, M12 x 45, 8.8

2шт.

17

86511605

TEE,3/4"-16, 37 Degree, Blkhd

2шт.

18

400093

ROCKER

1шт.

19

400240

NOZZLE

3шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
