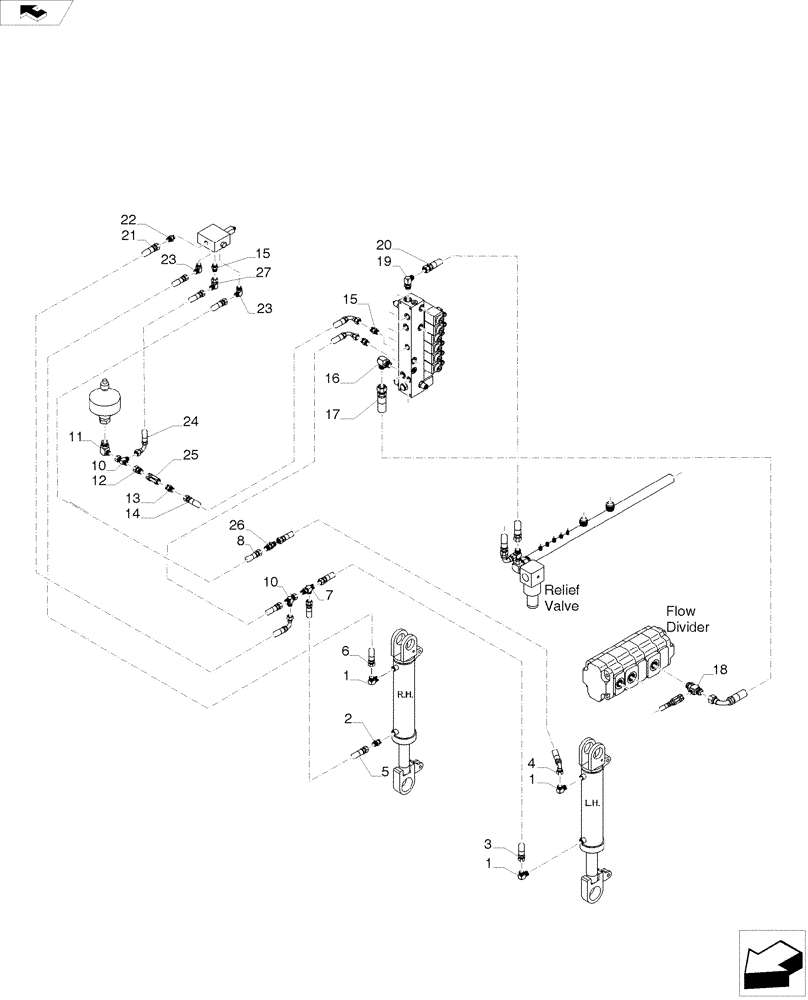

Запчасти Case IH A8800 (35.000.AA[27]) - HYDRAULIC SYSTEM, BASECUTTER LIFT / STABILITY KIT (35) - HYDRAULIC SYSTEMS

1

00400192

HYD CONNECTOR

3шт.

2

00400165

HYD CONNECTOR

1шт.

3

87401092

HOSE,9.53mm ID x 1870mm L, SAE 100R17

1шт.

4

87401091

HOSE,9.53mm ID x 1520mm L, SAE 100R17

1шт.

5

87401090

HOSE,9.53mm ID x 800mm L, SAE 100R17

1шт.

6

0087223865

HOSE

1шт.

7

00408876

TEE

1шт.

8

87247518

HOSE ASSY.

1шт.

9

87401088

HOSE,9.53mm ID x 980mm L, SAE 100R17

1шт.

10

00404787

TEE

1шт.

11

00404772

HYD CONNECTOR

1шт.

12

87422020

HYD CONNECTOR

1шт.

13

00404766

HYD CONNECTOR

1шт.

14

87256256

HOSE ASSY.

1шт.

15

00400093

HYD CONNECTOR

1шт.

16

00400227

HYD CONNECTOR

1шт.

17

86330600

HOSE ASSY.

1шт.

18

87421571

TEE

1шт.

19

00400242

HYD CONNECTOR

1шт.

20

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

1шт.

21

86313244

HOSE,9.53mm ID x 1300mm L, SAE 100R17

1шт.

22

00400225

LUBE NIPPLE

1шт.

23

00400240

HYD CONNECTOR

2шт.

24

87256256

HOSE ASSY.

1шт.

25

87236579

VALVE, CHECK

1шт.

26

00400268

HYD CONNECTOR

1шт.

27

00405078

HYD CONNECTOR

1шт.
