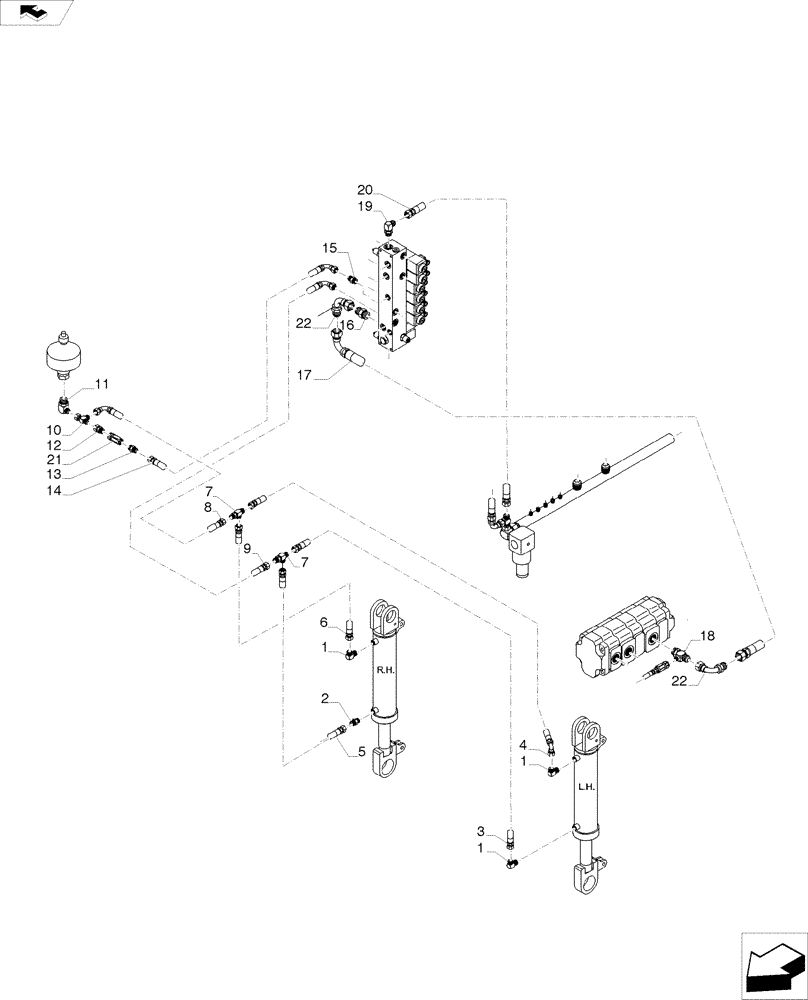

Запчасти Case IH A8800 (35.000.AA[26]) - HYDRAULIC SYSTEM, SUSPENSION (35) - HYDRAULIC SYSTEMS

1

00400240

HYD CONNECTOR

3шт.

2

00400093

HYD CONNECTOR

1шт.

3

87401092

HOSE,9.53mm ID x 1870mm L, SAE 100R17

1шт.

3

87424964

HOSE,9.53mm ID x 1970mm L, SAE 100R17

Louisiana

1шт.

4

87401091

HOSE,9.53mm ID x 1520mm L, SAE 100R17

1шт.

4

87424963

HOSE,9.53mm ID x 1670mm L, SAE 100R17

Louisiana

1шт.

5

87401090

HOSE,9.53mm ID x 800mm L, SAE 100R17

1шт.

5

87424962

HOSE,9.53mm ID x 900mm L, SAE 100R17

Louisiana

1шт.

6

87401089

HOSE,9.53mm ID x 970mm L, SAE 100R17

1шт.

6

87247518

HOSE ASSY.

Louisiana

1шт.

7

00408876

TEE

2шт.

8

374256A1

HOSE,9.53mm ID x 1140mm L, SAE 100R17

1шт.

9

87401088

HOSE,9.53mm ID x 980mm L, SAE 100R17

1шт.

10

00404787

TEE

1шт.

11

00404772

HYD CONNECTOR

1шт.

12

87422020

HYD CONNECTOR

1шт.

13

00404766

HYD CONNECTOR

1шт.

14

87256256

HOSE ASSY.

1шт.

15

00400093

HYD CONNECTOR

2шт.

16

00400227

HYD CONNECTOR

1шт.

17

86330600

HOSE ASSY.

1шт.

18

00408639

TEE

1шт.

19

00400242

HYD CONNECTOR

1шт.

20

87242175

HOSE,12.7mm ID x 720mm L, SAE 100R17

1шт.

21

87236579

VALVE, CHECK

1шт.

22

00407045

HYD CONNECTOR

2шт.
