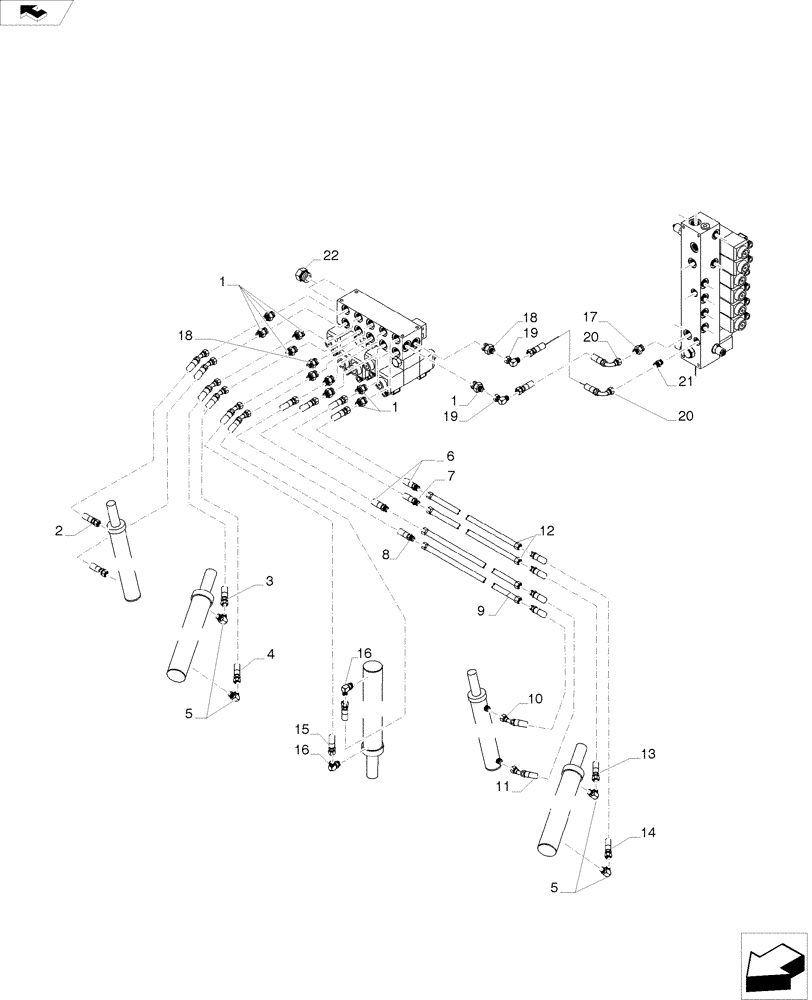

Запчасти Case IH A8800 (35.000.AA[24]) - HYDRAULIC SYSTEM (PKD ROLLER / CROPDIVIDER AND SIDETRIM LIFT) (35) - HYDRAULIC SYSTEMS

1

00400224

HYD CONNECTOR

10шт.

2

87256265

HOSE ASSY.

2шт.

3

87461157

HOSE,6.35mm ID x 2000mm L, SAE 100R17

1шт.

4

87255998

HOSE,6.35mm ID x 1670mm L, SAE 100R17

1шт.

5

00400238

HYD CONNECTOR

4шт.

6

87423020

HOSE,6.35mm ID x 610mm L, SAE 100R17

2шт.

7

87423019

HOSE,6.35mm ID x 650mm L, SAE 100R17

1шт.

8

87238307

HOSE,6.35mm ID x 570mm L, SAE 100R17

1шт.

9

87423825

TUBE,9.5 mm DIA x 1150 mm L

2шт.

10

87461155

HOSE ASSY.

1шт.

11

87461156

HOSE ASSY.

1шт.

12

87423827

TUBE,9.5 mm DIA x 1100 mm L

2шт.

13

87423015

HOSE,6.35mm ID x 1800mm L, SAE 100R17

1шт.

14

87423016

HOSE,6.35mm ID x 1950mm L, SAE 100R17

1шт.

15

86988883

HOSE,6.35mm ID x 2300mm L, SAE 100R17

2шт.

16

00402475

HYD CONNECTOR

2шт.

17

00400224

HYD CONNECTOR

2шт.

18

444074A1

HYD CONNECTOR

1шт.

19

00402879

HYD CONNECTOR

2шт.

20

86310227

HOSE ASSY.

2шт.

21

00400223

HYD CONNECTOR

1шт.

22

00400106

HYD CONNECTOR

2шт.
