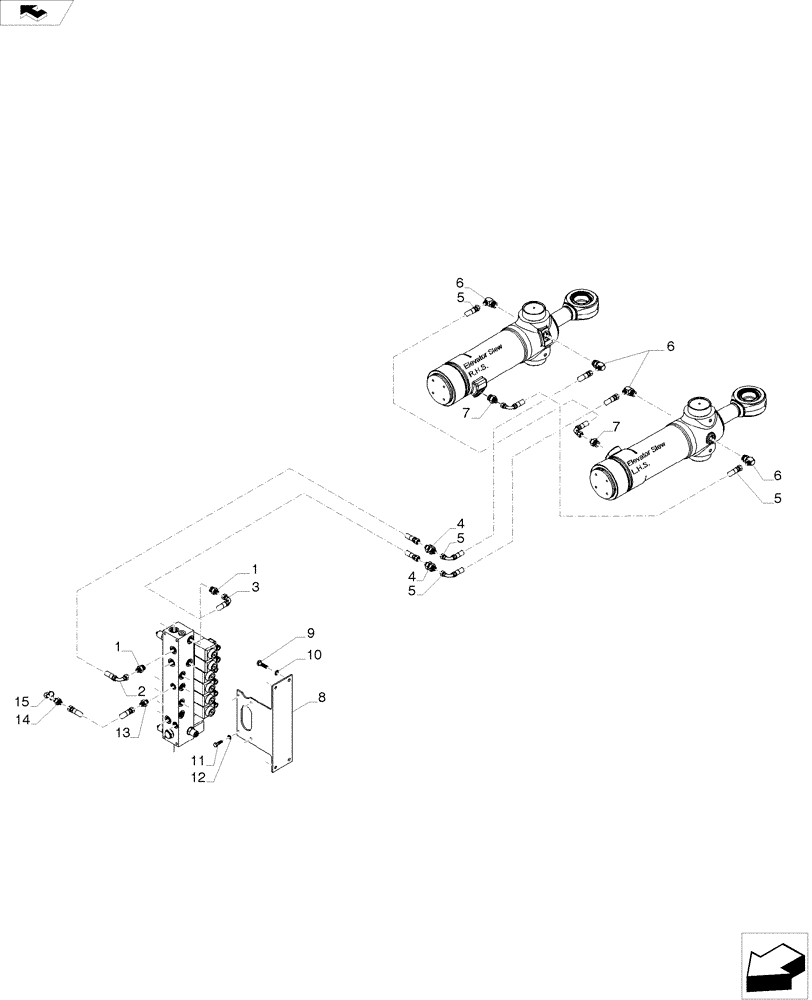

Запчасти Case IH A8800 (35.000.AA[20]) - HYDRAULIC SYSTEM, ELEVATOR, SLEWING/SWING (35) - HYDRAULIC SYSTEMS

1

00400224

HYD CONNECTOR

2шт.

2

82710800

HOSE,6.35mm ID x 4000mm L, SAE 100R17

1шт.

3

86327800

HOSE,6.35mm ID x 3750mm L, SAE 100R17

1шт.

4

00400070

HYD CONNECTOR

2шт.

5

82704900

HOSE,6.35mm ID x 530mm L, SAE 100R17

5шт.

6

00402475

HYD CONNECTOR

4шт.

7

00401868

HYD CONNECTOR

2шт.

8

0088109710

BRACKET

1шт.

9

FA110020

BOLT

4шт.

10

WB100000

WASHER

4шт.

11

FA108016

BOLT

4шт.

12

WB080000

WASHER

4шт.

13

00404763

HYD CONNECTOR

1шт.

14

00400162

HYD CONNECTOR

1шт.

15

00405498

SCREW ON COUPLING

1шт.
