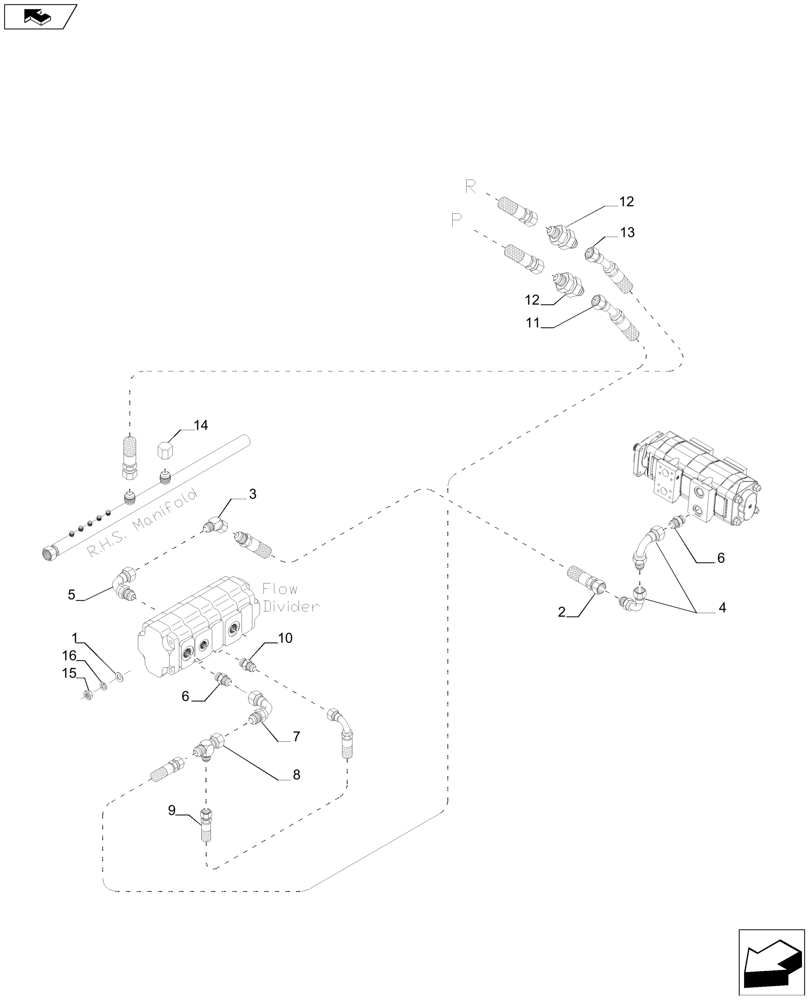

Запчасти Case IH A8800 (35.000.AA[12]) - HYDRAULIC SYSTEM (SHREDDER TOPPER, WITHOUT SIDETRIM) (35) - HYDRAULIC SYSTEMS

1

00605811

WASHER

4шт.

2

84245293

HOSE,25.4mm ID x 2600mm L, SAE 100R17

1шт.

3

0000948758

FITTING

1шт.

4

00400097

HYD CONNECTOR

2шт.

5

00409889

HYD CONNECTOR

1шт.

6

00400234

HYD CONNECTOR

2шт.

7

00403944

HYD CONNECTOR

1шт.

8

87221699

TEE

1шт.

9

87219055

HOSE ASSY.

1шт.

10

00400231

HYD CONNECTOR

1шт.

11

83129000

HOSE ASSY.

1шт.

12

00400067

HYD CONNECTOR

2шт.

13

87254533

HOSE,25.4mm ID x 1800mm L, SAE 100R17

1шт.

14

00400150

HYD CONNECTOR

1шт.

15

00605798

NUT

4шт.

16

00605831

WASHER

4шт.
