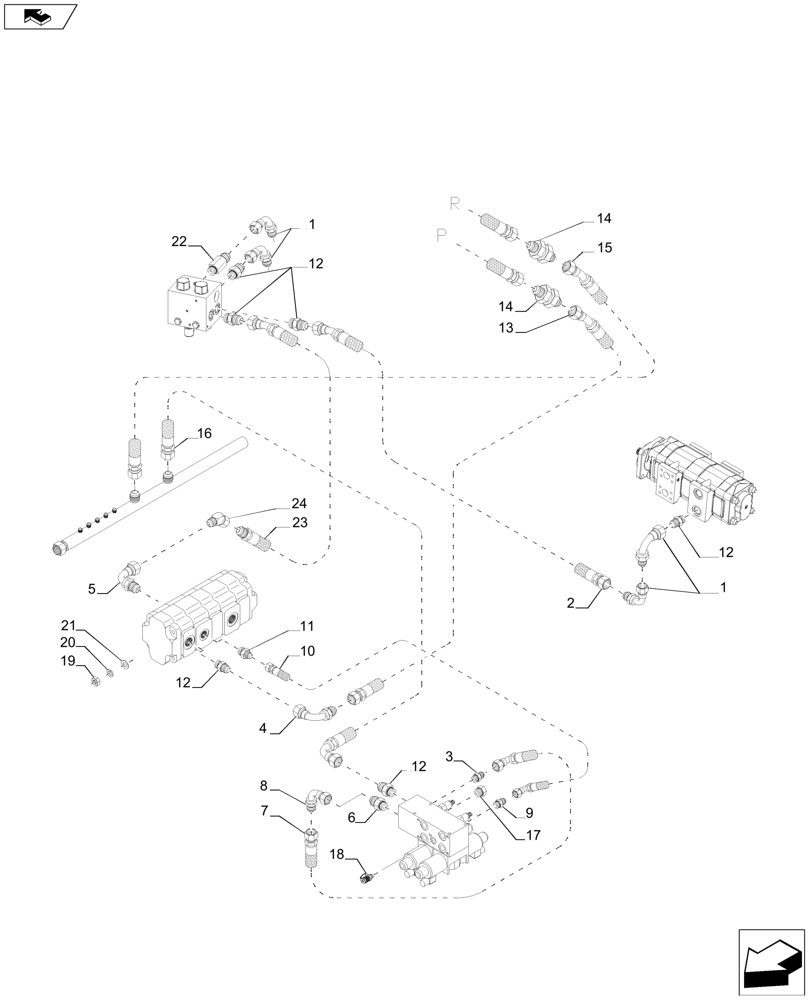

Запчасти Case IH A8800 (35.000.AA[10]) - HYDRAULIC SYSTEM (TOPPER, WITH SIDETRIM) (35) - HYDRAULIC SYSTEMS

1

00400097

HYD CONNECTOR

4шт.

2

84245293

HOSE,25.4mm ID x 2600mm L, SAE 100R17

1шт.

3

00400231

HYD CONNECTOR

1шт.

4

00403944

HYD CONNECTOR

1шт.

5

00409889

HYD CONNECTOR

1шт.

6

00400233

HYD CONNECTOR

1шт.

7

82711600

HOSE,19.05mm ID x 530mm L, SAE 100R17

1шт.

8

00400231

HYD CONNECTOR

1шт.

9

00400228

HYD CONNECTOR

1шт.

10

86310712

HOSE ASSY.

1шт.

11

00400230

HYD CONNECTOR

1шт.

12

00400234

HYD CONNECTOR

6шт.

13

87423010

HOSE,25.4mm ID x 870mm L, SAE 100R17

1шт.

14

00400067

HYD CONNECTOR

Long

2шт.

15

87254533

HOSE,25.4mm ID x 1800mm L, SAE 100R17

1шт.

16

87423009

HOSE,25.4mm ID x 2450mm L, SAE 100R16

1шт.

17

00401873

HYD CONNECTOR

1шт.

18

00405498

SCREW ON COUPLING

1шт.

19

00605798

NUT

4шт.

20

00605831

WASHER

4шт.

21

00605811

WASHER

4шт.

22

00409816

ADAPTER

Long

1шт.

23

87252188

HOSE ASSY.

1шт.

24

0000948758

FITTING

1шт.
