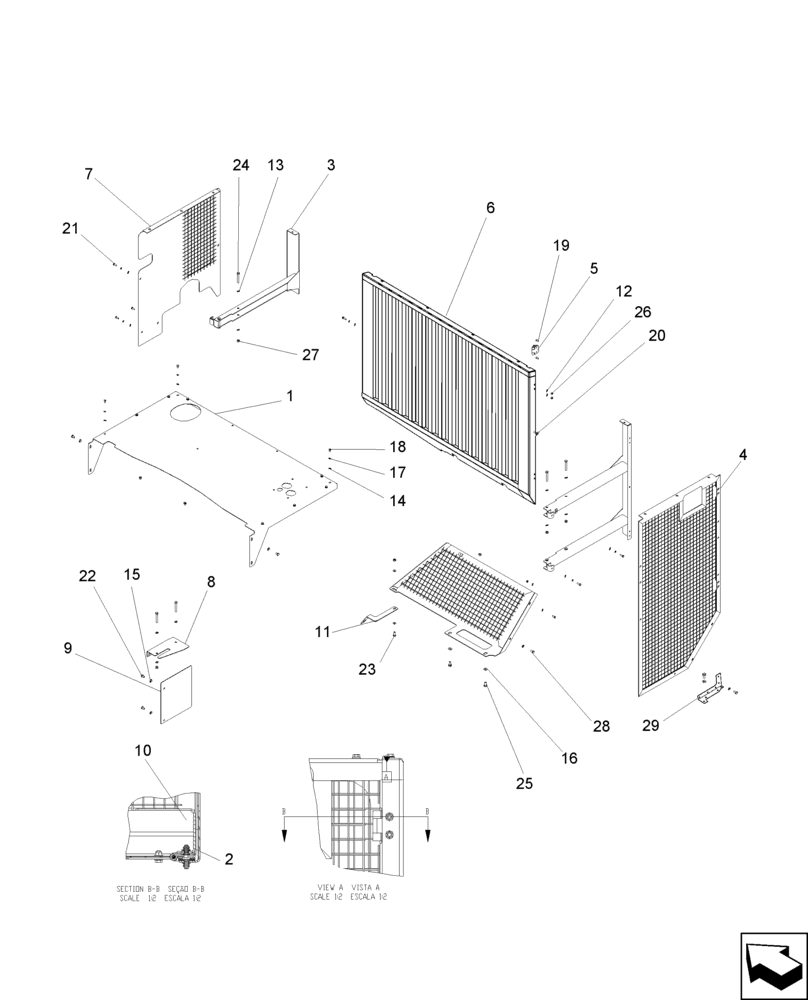

Запчасти Case IH A8800 (10.400.BG[03]) - RADIATOR GRILLE AND COVER (IVECO C9) (10) - ENGINE

1

84378073

TOP COVER

Upper

1шт.

2

84378075

SUPPORT

1шт.

3

84378074

SUPPORT

1шт.

4

84564165

GUARD

CNH Black

1шт.

5

377362A1

HINGE

2шт.

6

84378069

GUARD

Case Black

1шт.

7

84378072

SIDE PLATE

Case Black

1шт.

8

87524762

BRACKET

1шт.

9

84378077

SIDE PLATE

1шт.

10

84564166

GUARD

1шт.

11

87529452

BRACKET

1шт.

12

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

8шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

18шт.

14

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

22шт.

15

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

17

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

18шт.

18

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

13шт.

19

300497

SCREW,Hex Soc Flat Hd, M6 x 16, 8.8

8шт.

20

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

21

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

22

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

23

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

24

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

8шт.

25

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

26

353308

NUT,M6 x 1.0, Cl 8

9шт.

27

86629542

NUT,M8 x 1.25, Cl 8.8

9шт.

28

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

29

84549578

BRACKET, SUPPORTING

Case Black

1шт.
