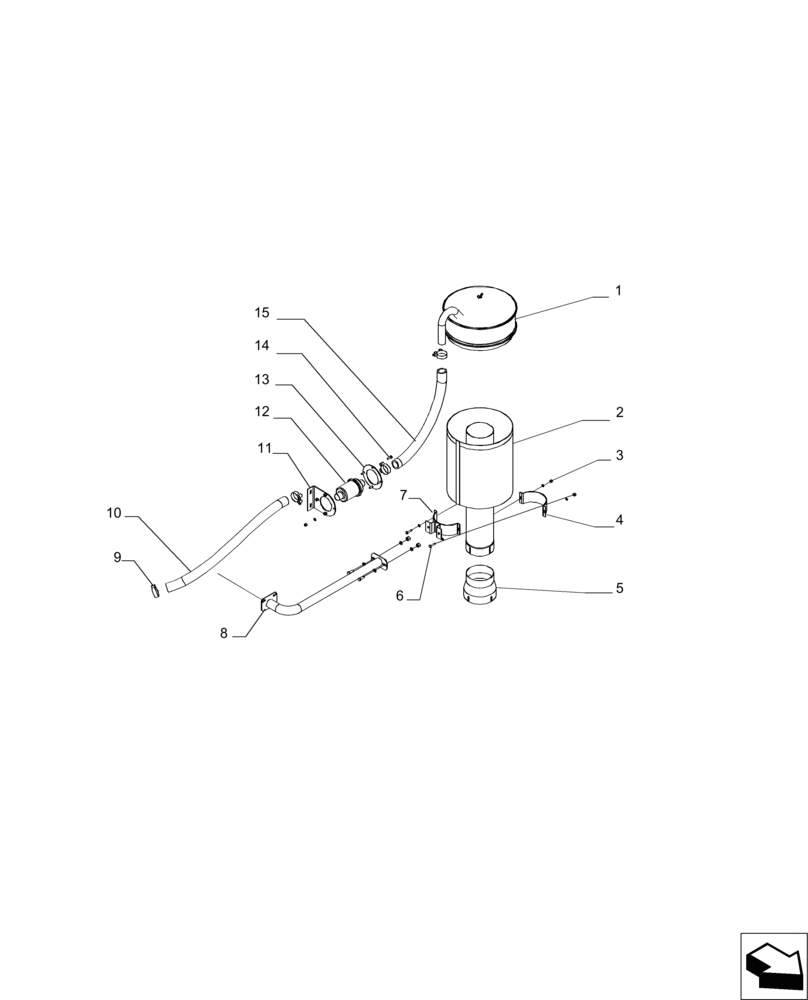

Запчасти Case IH A8800 (10.202.AM[01]) - AIR PRE-CLEANER ASSY (10) - ENGINE

1

84194406

AIR PRE-CLEANER ASSY

1шт.

2

87758967

AIR PRE-CLEANER ASSY

CNH black

1шт.

3

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

7шт.

4

87697595

CLAMP

1шт.

5

87236759

PIPE FITTING

Case black

1шт.

6

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

7

87643376

CLAMP

Case black

1шт.

8

84221603

TUBE

Case black

1шт.

9

84180945

COLLAR CLAMP,1.87" - 2.18"

4шт.

10

84175973

HOSE,38.1mm ID x 870mm L, SAE 100R4

1шт.

11

84175976

BRACKET

Case black

1шт.

12

00181996

CHECK VALVE

1шт.

13

87251505

FLANGE

1шт.

14

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

15

84198451

AIR HOSE,38.10 mm ID x 670.00 mm, SAE 100R4

1шт.
