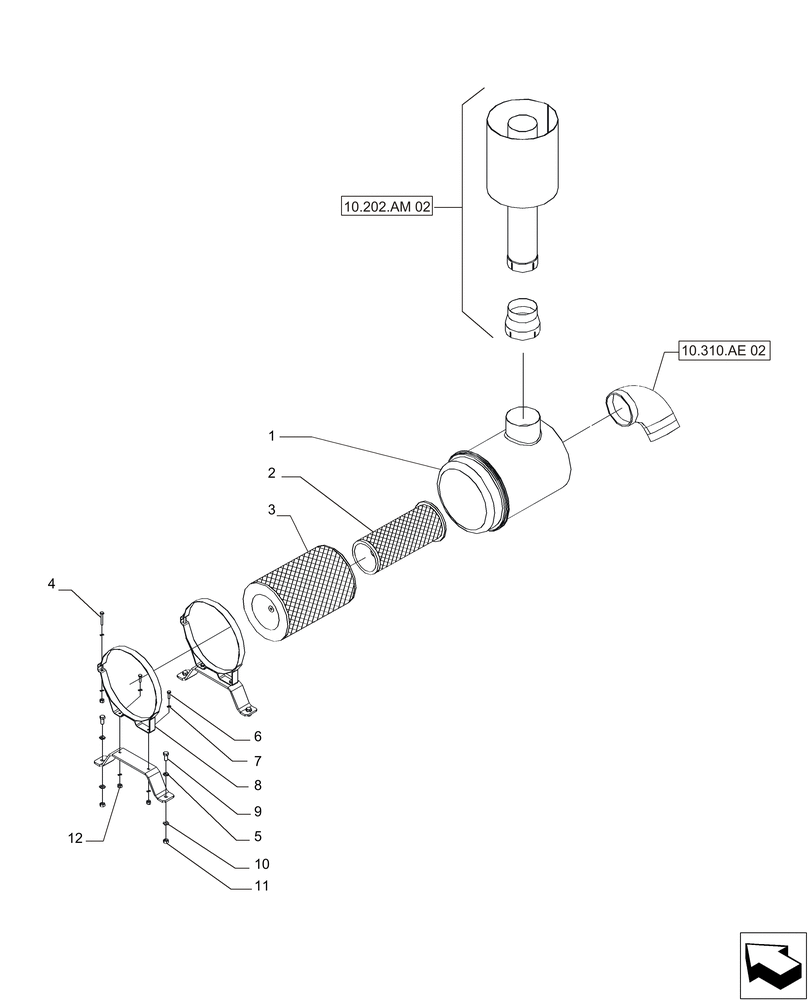

Запчасти Case IH A8800 (10.202.AB[04]) - DC-9 MOTOR, AIR CLEANER (10) - ENGINE

1

00180863

AIR CLEANER

Old air filter sytem, Serial Range: -800230

1шт.

1

84465364

AIR CLEANER

Current air filter system, Start Serial: 800231

1шт.

2

00180936

AIR FILTER

Old air filter sytem, Inner, Secondary, Serial Range: -800230

1шт.

2

84428273

AIR FILTER,Round, 231.4mm ID x 259.6mm OD x 571.8mm L, Paper

Current air filter system, Inner, Secondary, Start Serial: 800231

1шт.

3

00180935

AIR FILTER

Old air filter sytem, Outer, Primary, Serial Range: -800230

1шт.

3

84428272

AIR FILTER

Current air filter system, Outer, Primary, Start Serial: 800231

1шт.

4

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

2шт.

5

87680353

BRACKET

2шт.

6

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

25шт.

8

87237033

CLAMP

2шт.

9

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

4шт.

10

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

8шт.

11

392530

NUT,M16, Cl 10

4шт.

12

12577511

NUT,M12 x 1.75, Cl 8

8шт.
