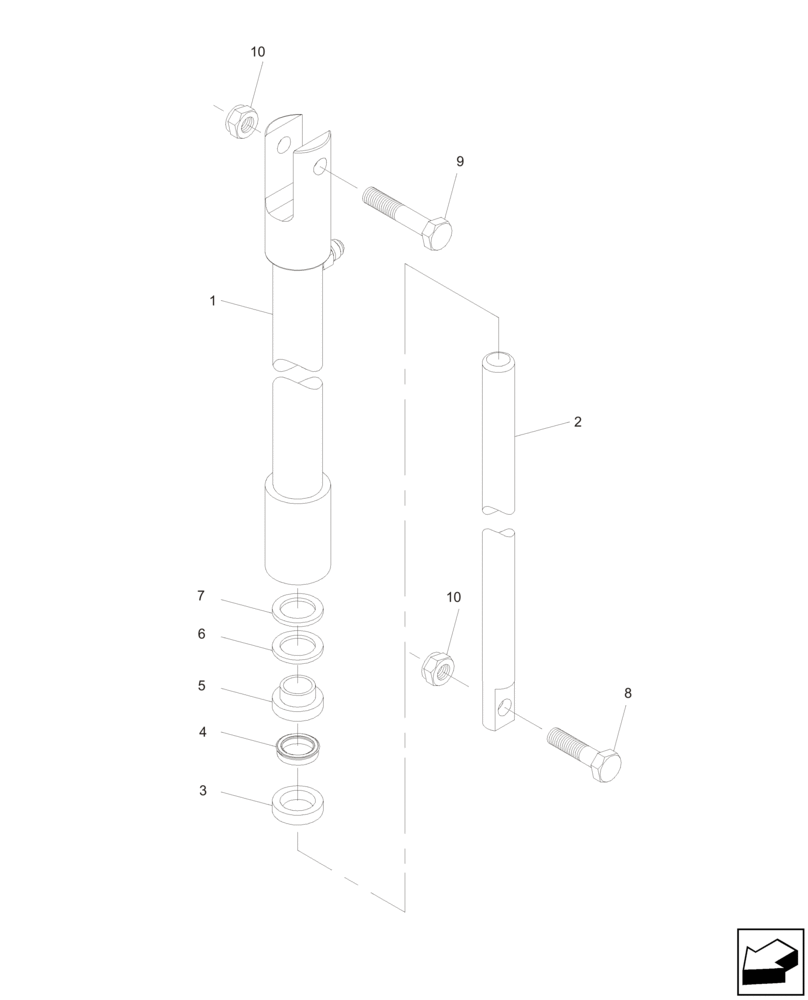

Запчасти Case IH A8800 (90.151.AL[01]) - HYDRAULIC CYLINDER (HEIGHT INDICATOR 8800) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84396487

SLEEVE CYLINDER

1шт.

1

84389248

HYDRAULIC CYLINDER,22.2mm Rod, 260mm Stroke

1шт.

MY2012

1шт.

To update this Cylinder with High Pressure Kit (48068618), order the Cylinder Guide (48068617)

1шт.

2

450594A1

CYLINDER,22.23mm OD x 375mm L

1шт.

3

84397399

SCRAPER

1шт.

4

00100759

OIL SEAL

SEAL

1шт.

5

84396494

GUIDE

1шт.

6

218774

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

1шт.

7

84397400

RUBBER SEAL

1шт.

8

FA112045

BOLT

1шт.

9

FA112060

BOLT

1шт.

10

NC112000

NUT

2шт.

11

84410430

SEAL KIT

(3,4,6,7)

1шт.

12

84389248

HYDRAULIC CYLINDER,22.2mm Rod, 260mm Stroke

Complete Cylinder Assy

1шт.
