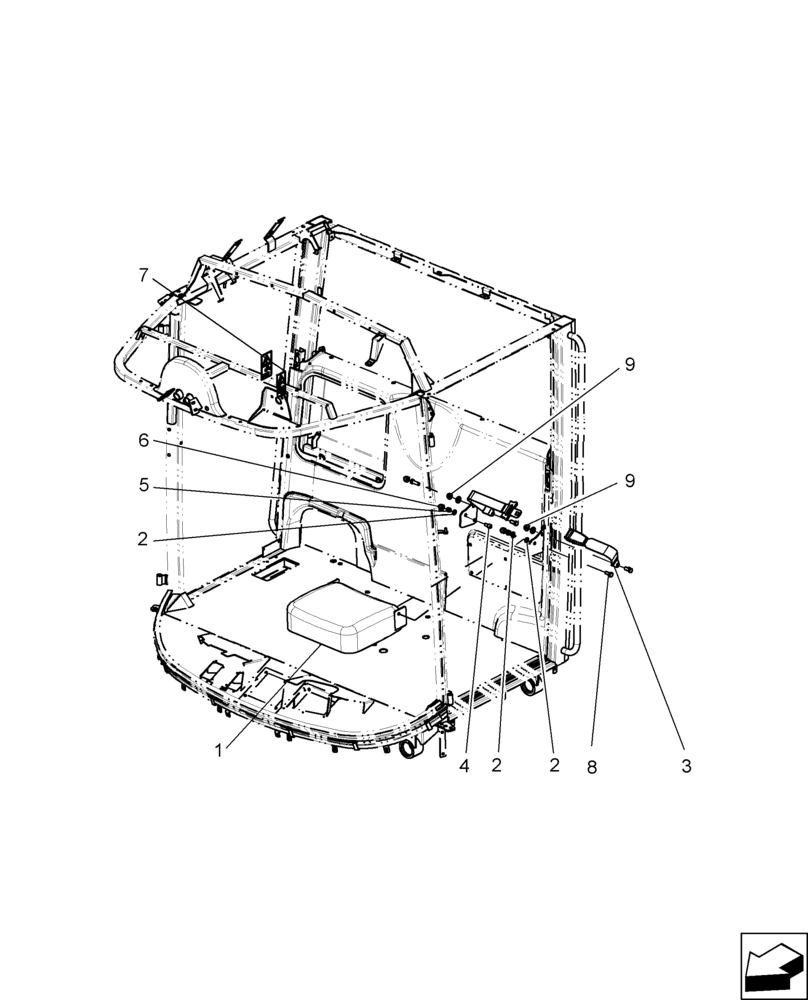

Запчасти Case IH A8800 (90.151.AC[02]) - INSTRUCTOR SEAT - MY2012 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84244098

INSTRUCTIONAL SEAT

1шт.

2

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

3

825934

SEAT BELT,48.00 mm W

1шт.

4

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

1шт.

5

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

6

747886

NUT

3шт.

7

84282118

DECAL

1шт.

8

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

9

231-5447

FLANGE NUT,Flg, 7/16"-20

2шт.
