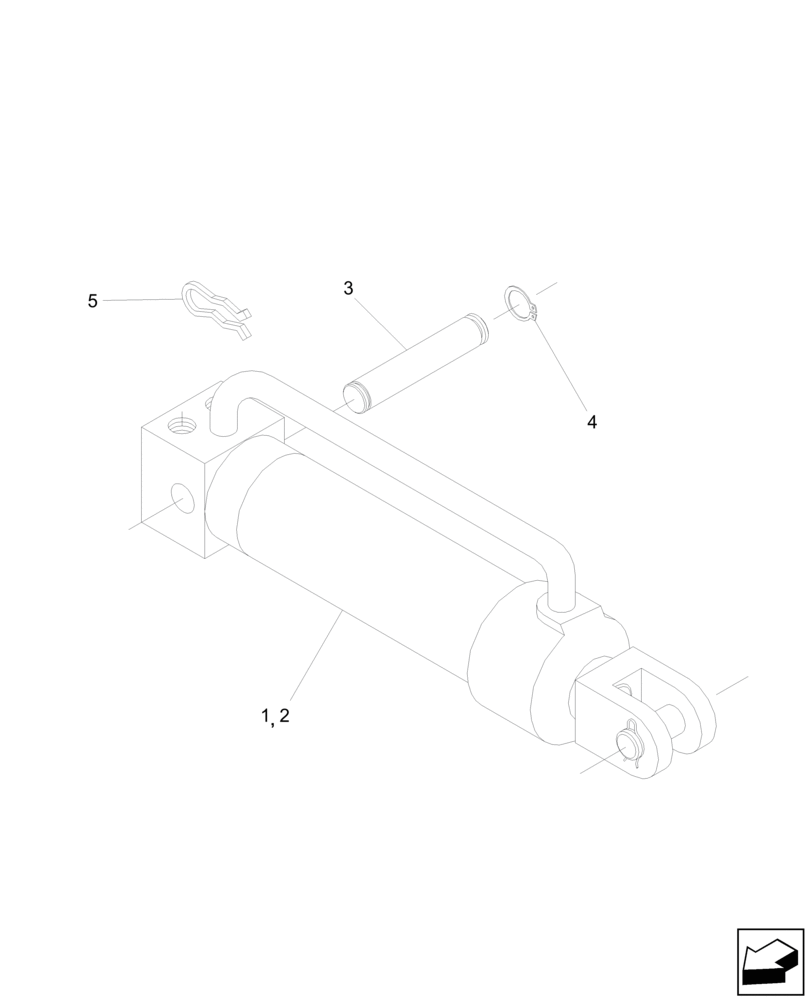

Запчасти Case IH A8800 (90.150.BD[01]) - HYDRAULIC CYLINDER (CABIN TILT) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

377072A1

CYLINDER,Double Acting, 34.92mm Rod, 300mm Stroke

Hydraulic

1шт.

1

47772558

CORE-HYD CYLINDER

MY2016

1шт.

395125A1

VALVE

2шт.

87462033

PISTON

1шт.

87462035

CYLINDER

Rear

1шт.

87462036

CLEVIS

1шт.

87462039

TUBE

1шт.

87462040

GUIDE BUSHING

1шт.

87462041

ROD

1шт.

87462042

TUBE

1шт.

2

395124A1

SEAL KIT

1шт.

3

379352A1

PIN,25.4mm OD x 137mm L

1шт.

4

CE022000

CIRCLIP

1шт.

5

0000943257

STAPLE

1шт.
