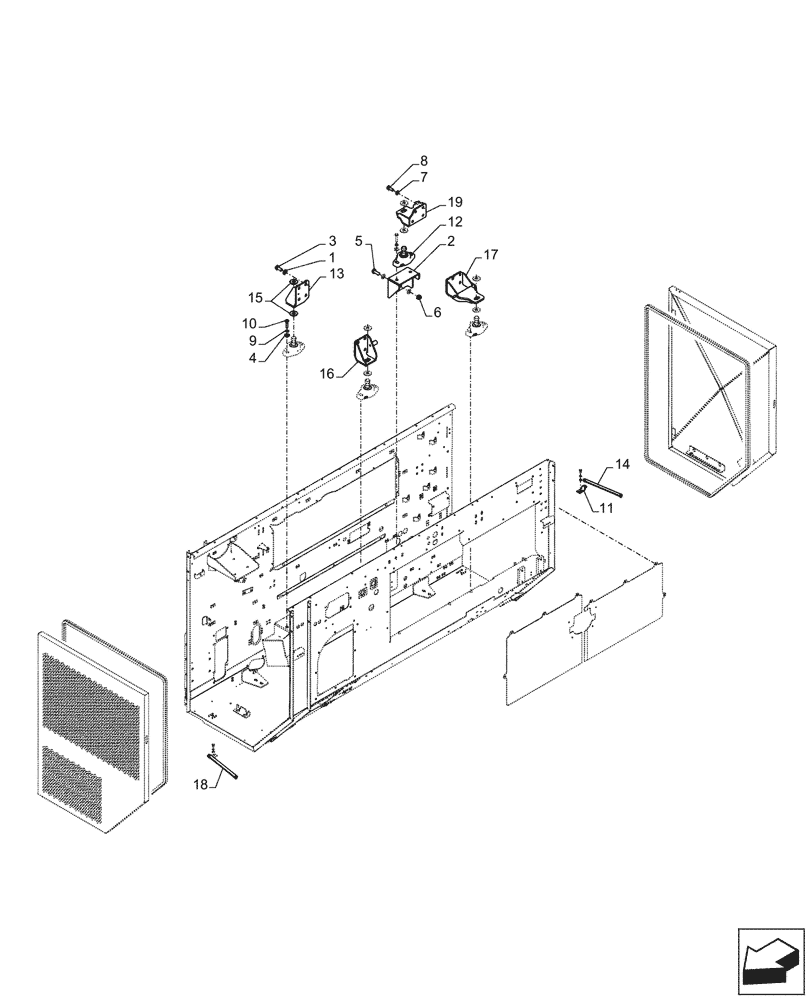

Запчасти Case IH A8800 (90.105.CS[17]) - BOX, ENGINE - MY-16 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

2

47412832

SUPPORT

1шт.

3

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

8шт.

4

135789

WASHER

8шт.

5

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

6

412066

NUT,M16 x 2.0, Cl 8

4шт.

7

10520101

WASHER,14.4mm ID x 26mm OD x 3mm Thk

8шт.

8

280854

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

8шт.

9

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

10

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

11

47607071

PLATE

2шт.

12

87217404

MOUNTING PARTS

4шт.

13

47412849

SUPPORT

1шт.

14

47574500

PLATE

2шт.

15

BN320165

WASHER

8шт.

16

47888048

SUPPORT

1шт.

17

47412833

SUPPORT

1шт.

18

130003

COTTER PIN,3mm OD x 30mm OAL

4шт.

19

47412834

SUPPORT

1шт.
