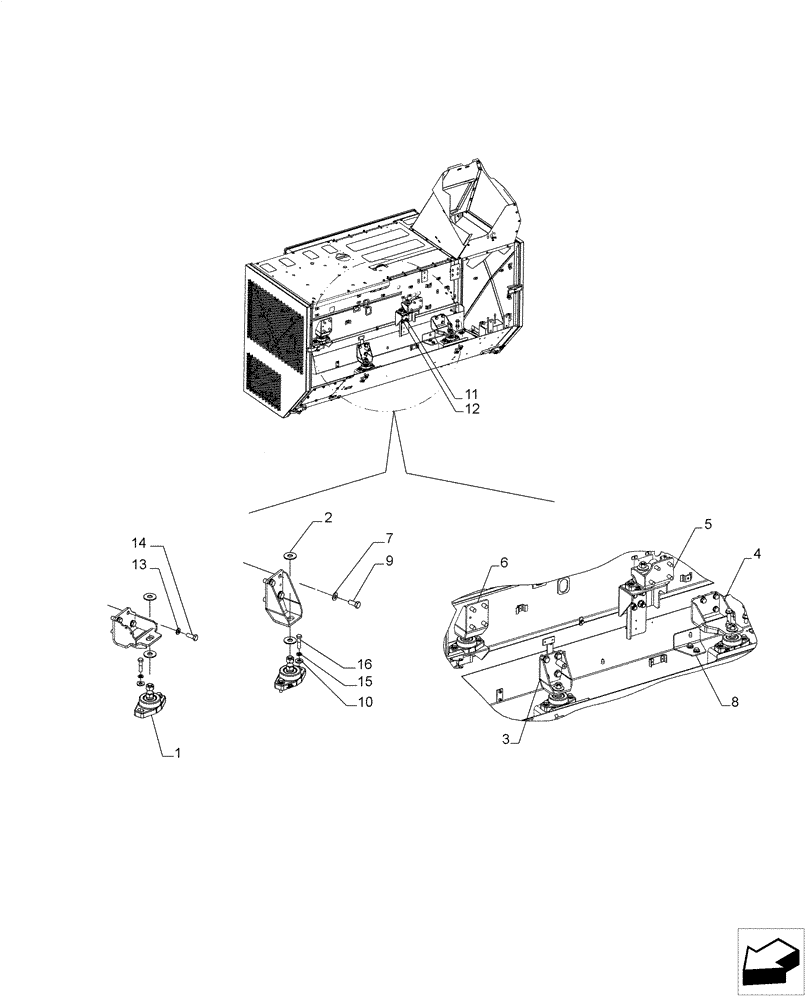

Запчасти Case IH A8800 (90.105.CS[11]) - BOX, ENGINE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87217404

MOUNTING PARTS

4шт.

2

BN320165

WASHER

8шт.

3

47412845

SUPPORT

1шт.

4

47412833

SUPPORT

1шт.

5

47412834

SUPPORT

1шт.

6

47412849

SUPPORT

1шт.

7

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

20шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

8шт.

10

135789

WASHER

8шт.

11

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

12

412066

NUT,M16 x 2.0, Cl 8

4шт.

13

10520104

WASHER,14.4mm ID x 26mm OD x 3mm Thk

8шт.

14

280854

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

8шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

16

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.
