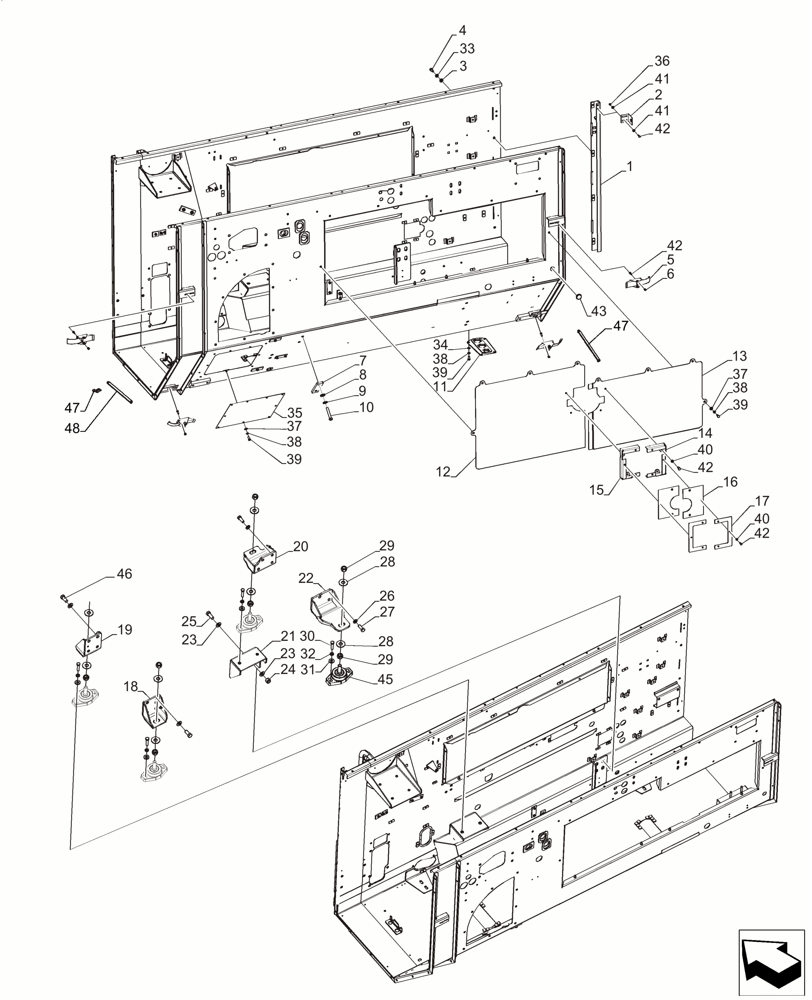

Запчасти Case IH A8800 (90.105.CS[05]) - ENGINE COMPARTMENT (IVECO C9) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87491775

STEEL PLATE

1шт.

2

84208035

BRACKET

1шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

5

00181880

LATCH

4шт.

6

12574211

NUT,M6 x 1, Cl 8

8шт.

7

404540A1

CLAMP

2шт.

8

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

12шт.

9

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

12шт.

10

9706717

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

11

86994435

PLATE

2шт.

12

84280785

PLATE

1шт.

13

84280784

PLATE

1шт.

14

84567847

SUPPORT

1шт.

15

84567848

SUPPORT

1шт.

16

84567849

SEALING STRIP

2шт.

17

84567846

PLATE

2шт.

18

47412845

SUPPORT

1шт.

19

47412849

SUPPORT

1шт.

20

47412832

SUPPORT

1шт.

21

47412834

SUPPORT

1шт.

22

47412833

SUPPORT

1шт.

23

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

24

412066

NUT,M16 x 2.0, Cl 8

4шт.

25

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

26

10520101

WASHER,14.4mm ID x 26mm OD x 3mm Thk

8шт.

27

280854

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

8шт.

28

BN320165

WASHER

8шт.

29

9823966

NUT,3/4"-16, G8

2шт.

30

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

31

135789

WASHER

8шт.

32

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

8шт.

33

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

7шт.

34

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

35

47558132

PLATE

1шт.

36

353308

NUT,M6 x 1.0, Cl 8

14шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

84шт.

38

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

72шт.

39

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

68шт.

40

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

28шт.

41

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

20шт.

42

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

44шт.

43

139952

GROMMET

4шт.

44

130003

COTTER PIN,3mm OD x 30mm OAL

1шт.

45

87217404

MOUNTING PARTS

4шт.

46

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

8шт.

47

47574500

PLATE

2шт.

48

47607071

PLATE

2шт.
