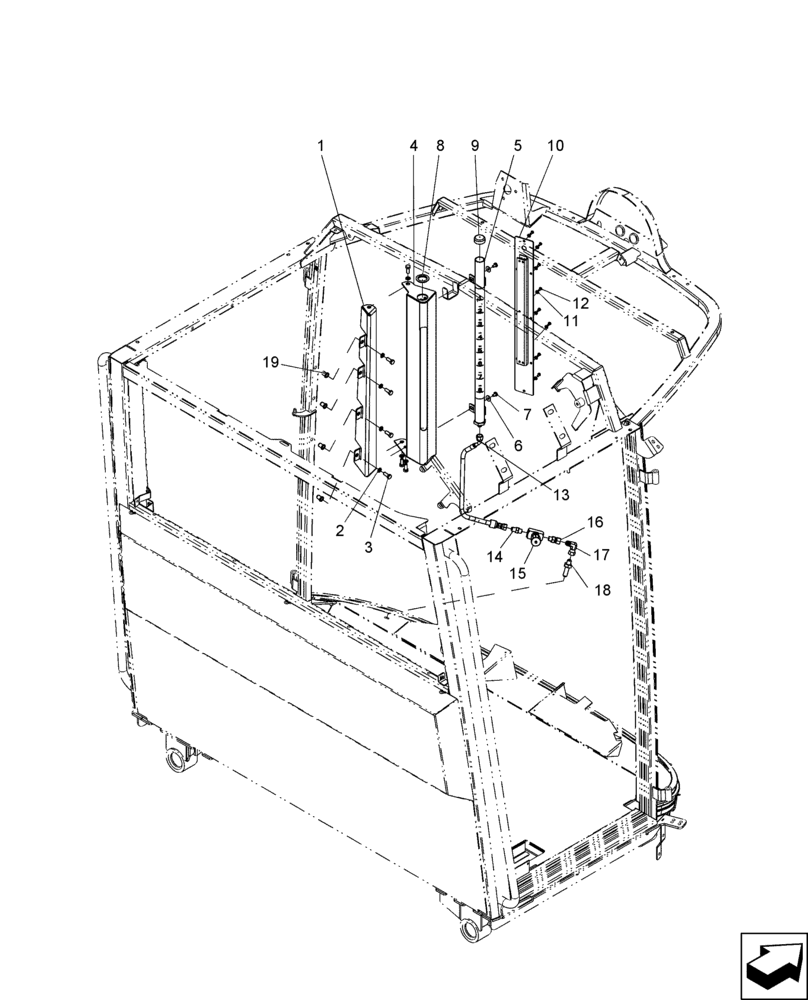

Запчасти Case IH A8800 (88.100.55[01]) - VISUAL SCALE - MY2012 -CAROUSEL - DIA (DEALER INSTALLATION ACCESSORY) (88) - ACCESSORIES

1

84470332

SUPPORT

1шт.

2

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

7шт.

3

87015745

BOLT,Hex, M8 x 20mm, Cl 8.8, Full Thd

7шт.

4

84470339

COVER

1шт.

5

84408479

TUBE

1шт.

6

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

2шт.

7

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

2шт.

8

84408883

GROMMET

1шт.

9

84412143

TOP

29 mm

1шт.

10

84470335

ACCESS COVER

LIGHT LED BAR

1шт.

11

14496307

WASHER,5.3mm ID x 10mm OD x 1mm Thk

8шт.

12

84058989

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

8шт.

13

84410581

HOSE,6.35mm ID x 600mm L, SAE 30R2

1шт.

14

00404763

HYD CONNECTOR

1шт.

15

408321

NEEDLE VALVE

1шт.

16

0000948798

ADAPTER

1шт.

17

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

18

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1шт.

19

15629111

RIVET,Flat, M8 OD x 17.5mm L

4шт.
