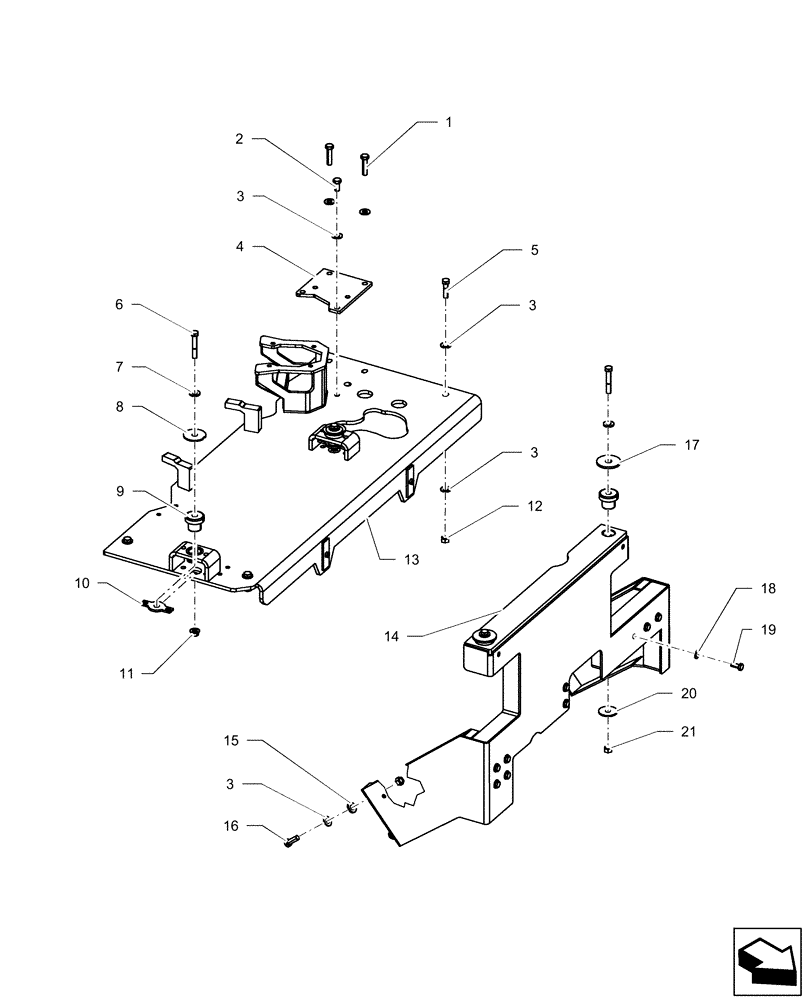

Запчасти Case IH A8800 (74.204.AA[05]) - BRACKET MY16 (74) - CLEANING

1

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

2

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

18шт.

4

47892455

PLATE

1шт.

5

120080

BOLT,Hex, M12 x 45, 8.8

4шт.

6

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

7

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

4шт.

8

47739447

PLATE

2шт.

9

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

4шт.

10

47705302

PLATE

2шт.

11

87681209

FLANGE NUT,Hex, M12 x 1.75, Cl 10

2шт.

12

9706685

NUT,M12 x 1.75, Cl 8

6шт.

13

47892020

PLATE

1шт.

14

47519206

SUPPORT

1шт.

15

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

4шт.

16

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

2шт.

17

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

2шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

19

BER43139

BOLT

9шт.

20

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

2шт.

21

86000021

BEARING LOCK NUT,M12, Cl 8

2шт.
