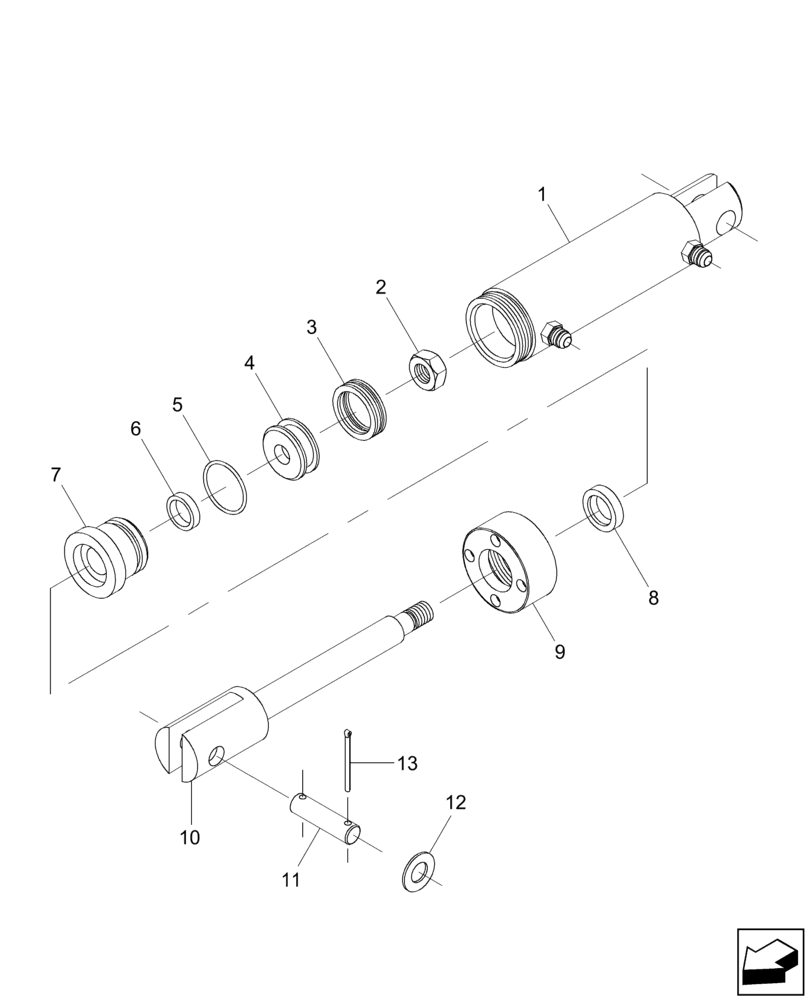

Запчасти Case IH A8800 (74.200.AE) - HYDRAULIC CYLINDER (EXTRACTOR BIN FLAP) (74) - CLEANING

1

87231204

CYLINDER,44.45mm Bore Dia

1шт.

2

00605804

NUT

1шт.

3

00100728

OIL SEAL

1шт.

4

87231206

PISTON

1шт.

5

00100027

O-RING

1шт.

6

00100759

OIL SEAL

1шт.

7

87214818

CYLINDER HEAD

1шт.

8

00100552

OIL SEAL

1шт.

9

87213507

NUT

1шт.

10

87231205

SHAFT

1шт.

11

82087400

PIN,15.88mm OD x 68mm L

2шт.

12

WA160000

WASHER

4шт.

13

SA050050

COTTER PIN

4шт.

14

00948956

SEAL KIT

1шт.

15

87231203

CYLINDER,Double Acting, 22.2mm Rod, 100mm Stroke

Assy

1шт.

Delete items 11-13

1шт.
