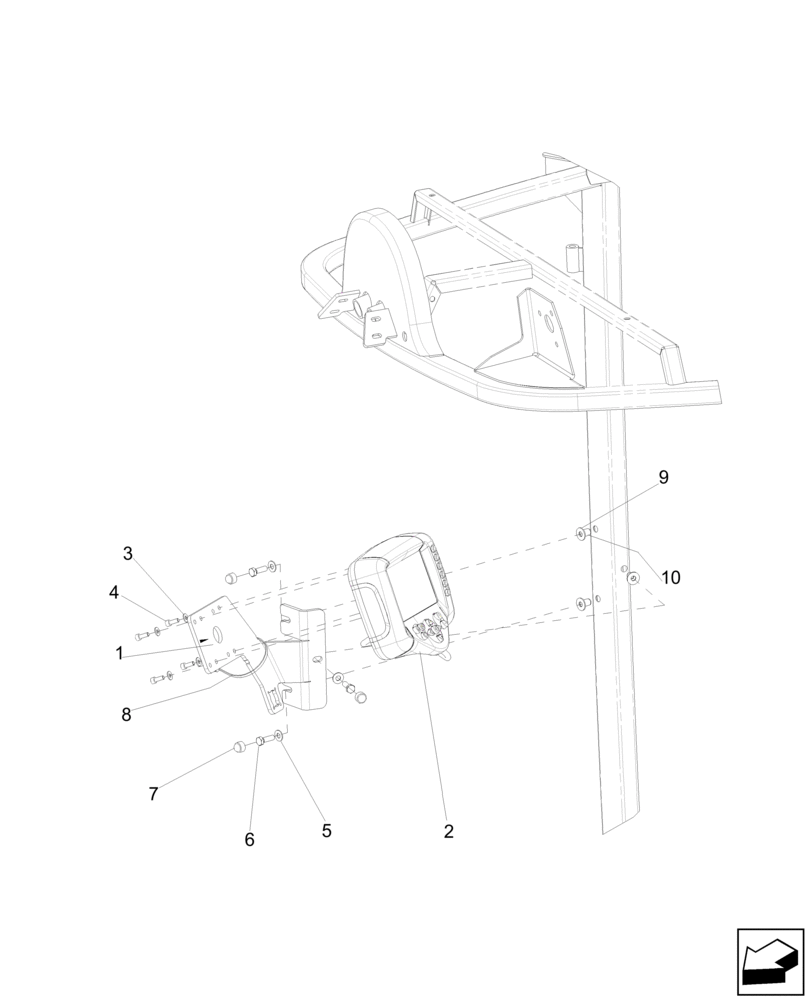

Запчасти Case IH A8800 (55.785.AF) - DISPLAY (55) - ELECTRICAL SYSTEMS

1

87629343

PLATE

1шт.

2

87703363

CONTROL MONITOR

1шт.

87703363R

REMAN-ELECT MONITOR

A8000 (TYRE MACHINE), A8800 (TRACK MACHINE) Both (BRAZIL) - ASN 880001 (4/09-)

1шт.

87703363C

CORE-MONITOR

Return Number

1шт.

3

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

4

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

4шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

6

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

7

458639

NUT,Nut, M8

3шт.

8

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

1шт.

9

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

3шт.

10

87563291

THREADED INSERT

3шт.
