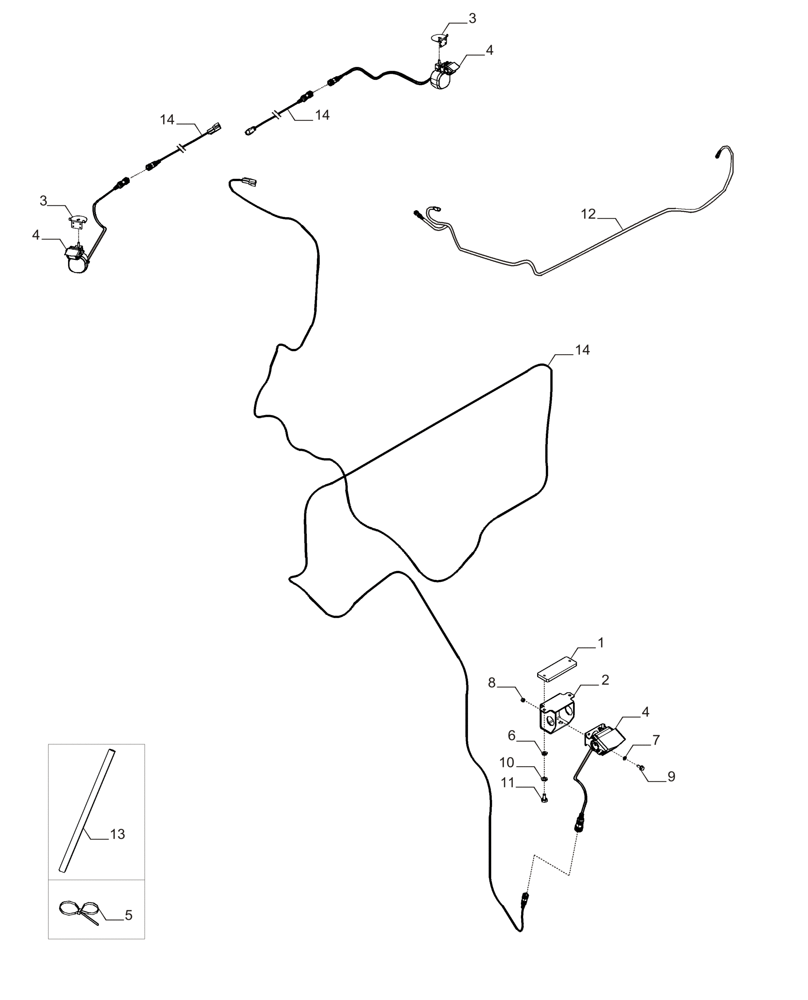

Запчасти Case IH A8800 (55.530.AD) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48043357

SUPPORT

1шт.

2

48034811

SUPPORT

1шт.

3

48035203

BRACKET

2шт.

4

47768902

VIDEO CAMERA

3шт.

5

82012869

CABLE TIE,300mm L, Nylon, Black

19шт.

6

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2шт.

7

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

24шт.

8

2977215

NUT,M5 x 0.8, Cl 8

12шт.

9

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

12шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

11

86624003

BOLT,Hex, M8 x 14mm, Cl 8.8, Full Thd

2шт.

12

48051979

WIRE HARNESS

WIRE HARNESS CAMERA BNC CONNECTOR

1шт.

13

47427653

CONDUIT

m

15шт.

14

84408853

ELECTRIC CABLE

BE-L SERIES

3шт.
