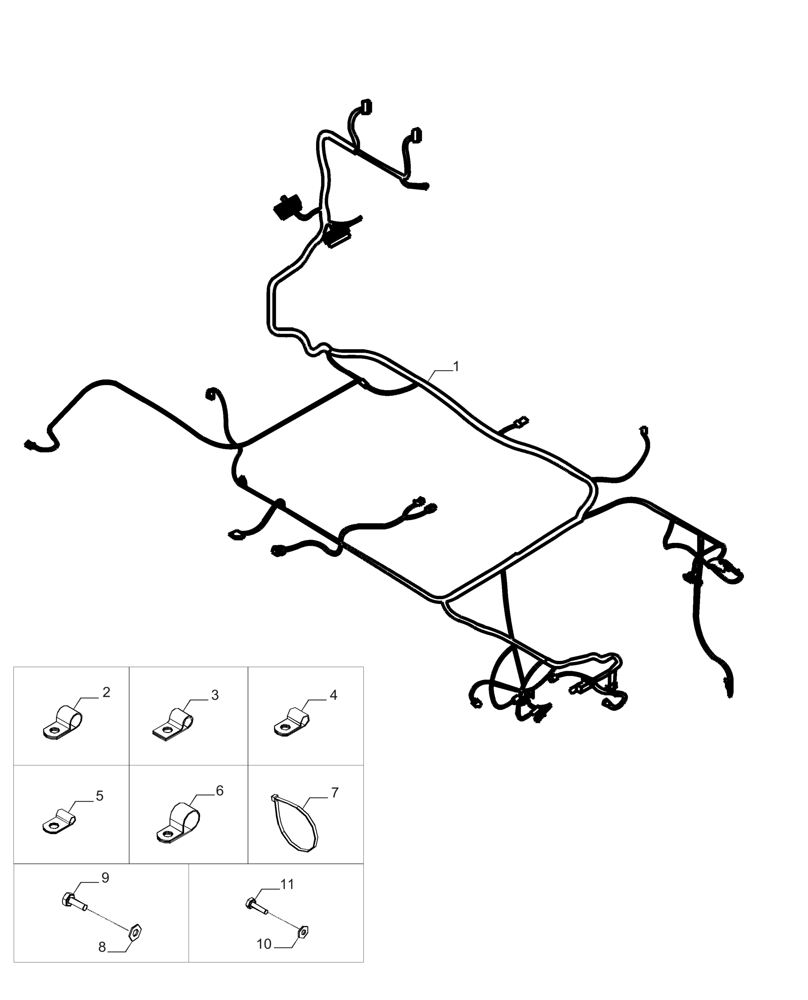

Запчасти Case IH A8800 (55.100.AF[07]) - WIRE HARNESS - MY 2017 (55) - ELECTRICAL SYSTEMS

1

48041294

WIRE HARNESS

Frontal

1шт.

2

86594406

CLAMP,15.9mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

3

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

4

87028524

CLAMP,11.1mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

5

853765

CLAMP,7.9mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

6

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

7

86566990

CABLE TIE,292mm OAL x 4.8mm W

6шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

10

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

11

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.
